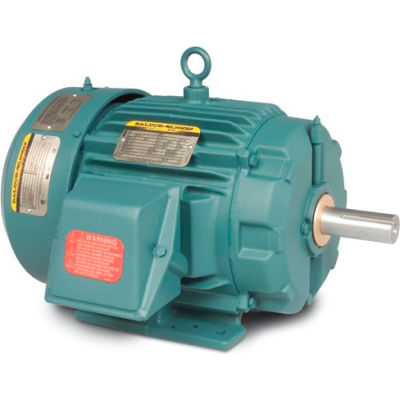

Baldor-Reliance Motor ECP84117T-5, 30HP, 1180RPM, 3PH, 60HZ, 326T, 1262M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor ECP84117T-5, 30HP, 1180RPM, 3PH, 60HZ, 326T, 1262M, TEFC, F1

Item #: WBB390433

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$7,679.00 up to 20% OFF

Price: $6,132.00

$1,022.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $6,132.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 30HP,1180RPM,3PH,60HZ,326T,1262M,TEFC,F1

Features:
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Typical Applications:
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

Product Specifications

  • HORSEPOWER30
  • ENCLOSURETEFC
  • FRAME326T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1180
  • RPM1180
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6312
  • RPM RANGE1101-1200
  • # OF ROTOR BARS44
  • EFFICIENCY-291.7
  • is_motorYes
  • KVA-CODEG
  • POWER-FACTOR83
  • CUSTOMER-PART-NUMBER--
  • FL EFFICIENCY93
  • MAX. KVAR8.2
  • TEMP. CODET3
  • GREASEPOLYREX EM
  • SERIAL-NUMBER--
  • SPEC. NUMBER12E599W108
  • # OF STATOR SLOTS54
  • BEARING-DRIVE-END6312
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS29
  • MAX. SPACE HEATER TEMP.--
  • MANUFACTURER PART #ECP84117T-5
  • SPACE-HEATER-AMPS--
  • WEIGHT LBS.630
  • SPACE-HEATER-VOLTS--
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES30.53
  • POLES6
  • INSULATION CLASSF
