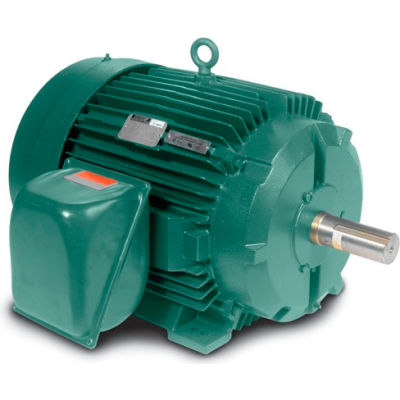

Baldor-Reliance Motor IDVSNM3581T, 1HP, 1750RPM, 3PH, 60HZ, 143TC, 0528M, TENV, F1

Baldor-Reliance Motor IDVSNM3581T, 1HP, 1750RPM, 3PH, 60HZ, 143TC, 0528M, TENV, F1

Item #: WBB389243

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,159.00 up to 18% OFF

Price: $954.00

$159.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $954.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1750RPM,3PH,60HZ,143TC,0528M,TENV,F1

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETENV
  • FRAME143TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1745
  • RPM1745
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT62
  • RPM RANGE1701-1800
  • ROTOR-INERTIA0.142
  • SLIP-HERTZ1.7
  • is_motorYes
  • FL EFFICIENCY85.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER05E534X129G2
  • BLOWER-PHASE--
  • BLOWER-AMPS--
  • BLOWER-HERTZ--
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERIDVSNM3581T
  • DOE-CODE--
  • FL AMPS2.9/1.45
  • BLOWER-VOLTS--
  • MAGNETIZING-CURRENT1.8/.9
  • MAXIMUM-RPM6000
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES14.65
  • POLES4
  • INSULATION CLASSH
