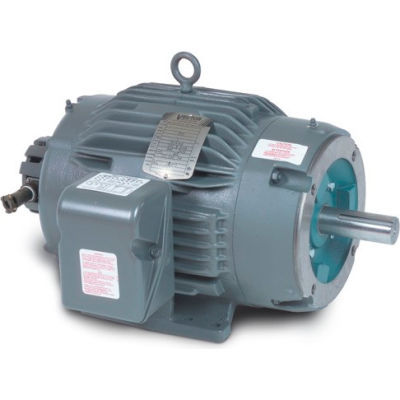

Baldor-Reliance Motor ZDM4110T, 40HP, 1775RPM, 3PH, 60HZ, 324T, 1256M, TEBC, F1

Baldor-Reliance Motor ZDM4110T, 40HP, 1775RPM, 3PH, 60HZ, 324T, 1256M, TEBC, F1

Item #: WBB392019

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$8,082.00 up to 18% OFF

Price: $6,647.00

$1,107.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $6,647.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 40HP,1775RPM,3PH,60HZ,324T,1256M,TEBC,F1

Features:
  • Full torque at zero speed
  • 1000:1 constant torque range
  • Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
  • 1/3 thru 500 horsepower
  • Cast Iron construction
  • C-Face with base 143TC thru 449TC
  • Base mount only in frames 5007L-5009L
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
Typical Applications:
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.

Product Specifications

  • HORSEPOWER40
  • ENCLOSURETEBC
  • FRAME324T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1775
  • RPM1775
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6311
  • WEIGHT606
  • RPM RANGE1701-1800
  • ROTOR-INERTIA7.46
  • SLIP-HERTZ0.8
  • is_motorYes
  • FL EFFICIENCY94.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER12T038W830Z1
  • BLOWER-PHASE--
  • BLOWER-AMPS--
  • BLOWER-HERTZ--
  • BEARING-DRIVE-END6312
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERZDM4110T
  • DOE-CODE--
  • FL AMPS94/47
  • BLOWER-VOLTS--
  • MAGNETIZING-CURRENT32/16
  • MAXIMUM-RPM3900
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES39.24
  • POLES4
  • INSULATION CLASSH
