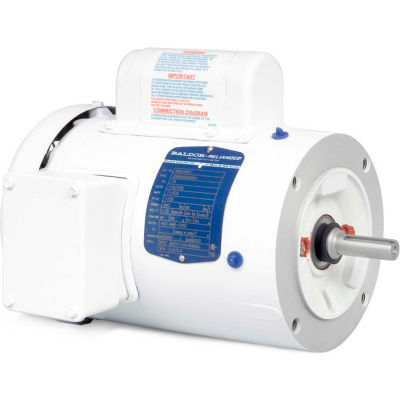

Baldor-Reliance Motor VWDL3504, .5HP, 1725RPM, 1PH, 60HZ, 56C, 3520L, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor VWDL3504, .5HP, 1725RPM, 1PH, 60HZ, 56C, 3520L, TEFC, F1

Item #: WBB391878

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$523.00 up to 16% OFF

Price: $439.95

Save $22.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1725RPM,1PH,60HZ,56C,3520L,TEFC,F1

Features:
  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Typical Applications:
Food processing and other applications where motor is regularly exposed to high pressure wash down.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETEFC
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT35
  • RPM RANGE1701-1800
  • BALDOR CATALOG NUMBERVWDL3504
  • FL AMPS8/4
  • MANUFACTURER PART #VWDL3504
  • BEARING-OPP-DRIVE-END6203
  • DRIVE END FLANGEC-Face
  • is_motorYes
  • C-DIMENSION INCHES12.25
  • POLES4
