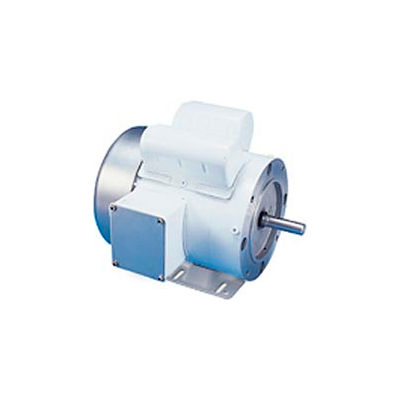

Leeson Motors Motor Washdown Motor-1/3HP, 115/208-230V, 1725RPM, TEFC, RIGID C, 1.15 SF, 62 Eff.

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1/3HP, 115/208-230V, 1725RPM, TEFC, RIGID C, 1.15 SF, 62 Eff.

Item #: WBB228246

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

$690.00 up to 47% OFF

Price: $362.95

Save $18.15 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Washguard White Epoxy Motor, Single Phase: 1/3HP, 1725 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, RIGID C, 115/208-230V, 1PH, 60HZ, Name Plate Amps 6.4/3.2, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 62, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8.

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • 10:1 ratio for constant or variable torque at 1.0 SF


Product Specifications

  • HORSEPOWER1/3
  • ENCLOSURETEFC
  • FRAME56
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/208-230
  • NAMEPLATE AMPS6.4/3.2
  • COMPATIBLE WITH/REPLACESMarathon N557
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT31
  • ULY
  • CSAY
  • LEESON MODEL NO.C6C17WK2PP
  • UPC69172001094
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • FL EFFICIENCY62
  • CATALOG NUMBER112526.00
  • DESIGNCapacitor Start Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS6.4/3.2
  • MANUFACTURER PART #112526.00
Customer Review

5.0

  • 5 Star

    1
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: August 31, 2011

    another win
    Your review:
    Works fine on our production pump. Quick delivery.
