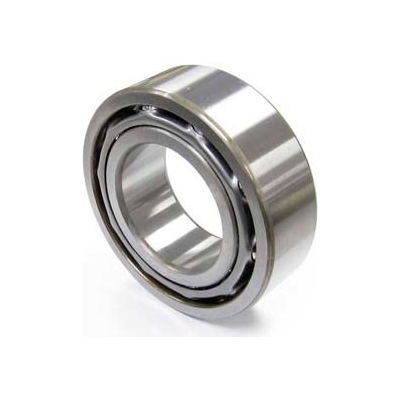

NACHI 5307ZZ, Double Row Angular Contact Bearing, Double Shielded, 35MM Bore x 80MM OD x 34.9MM W
Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.
Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.
Product Specifications
- BRANDNachi
- BORE DIAMETER MILLIMETERS35
- OUTER DIAMETER MILLIMETERS80
- WIDTH MILLIMETERS34.9
- DYNAMIC LOAD RATING (N)52000
- STATIC LOAD RATING (N)37000
- SERIES5300
- TOLERANCEISO Class 0
- Max Speed (rpm) / Grease6,300
- MANUFACTURERS PART NUMBER5307ZZ
- CONTACT ANGLE20°
- RADIAL CLEARANCENormal
