IGUS OJUI-01-16 DryLin R Open Linear Polymer Bearing with Shell - 1"Dia. Shaft

IGUS OJUI-01-16 DryLin R Open Linear Polymer Bearing with Shell - 1"Dia. Shaft

Item #: WBB434745

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$26.33 up to 9% OFF

Price: $24.00

Save $1.20 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

DryLin R Open Linear Polymer Bearing with Shell - 1"Dia. Shaft

Special Features:
  • Anodized aluminum adapter
  • Dimensions interchangeable with linear ball bearings
  • Equipped with liner made from iglide® J: temperature range -40°F to +194°F. JUI-01 (standard)
  • T500 liner optional for chemicals/high temps (up to 482°F for steel housing, 356°F for aluminum)
  • Suitable shafting for iglide® J: DryLin® AWI aluminum, case-hardened, 300 series stainless. Best shafting for T500: hard-chrome and hard-stainless steel

Product Specifications

  • TOLERANCE0.0016-0.0032
  • MANUFACTURER NAMEigus, Inc.
  • MANUFACTURER PART NUMBEROJUI-01-16

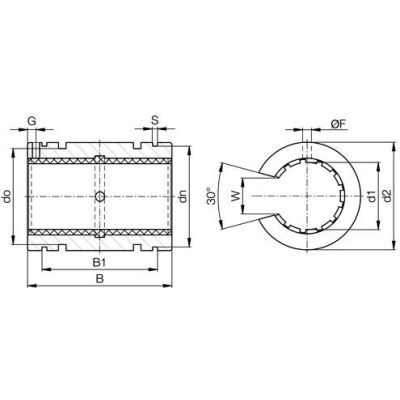

  • DIAGRAM DIMENSION do1.372
  • STATIC LOAD LBS. @ 180° 1443
  • DIMENSION B11.789
  • DIAGRAM DIMENSION ds1.5271
  • BRANDigus®
  • STATIC LOAD LBS. @ 0° 5678
  • DIMENSION B2.2421
  • DIAGRAM DIMENSION dn1.471
  • STATIC LOAD LBS. @ 90° 2804
  • DYNAMIC LOAD LBS. @ 90°400
  • DYNAMIC LOAD LBS. @ 180°206
  • TEMPERATURE (°F)-40 to 194
  • DYNAMIC LOAD LBS. @ 0°590
  • NOMINAL SIZE INCHES1/2
  • DIMENSION G0.125
  • DIMENSION W0.63
  • DIMENSION F0.136
  • DIAGRAM DIMENSION d23.0000
  • DIAGRAM DIMENSION s 0.074
