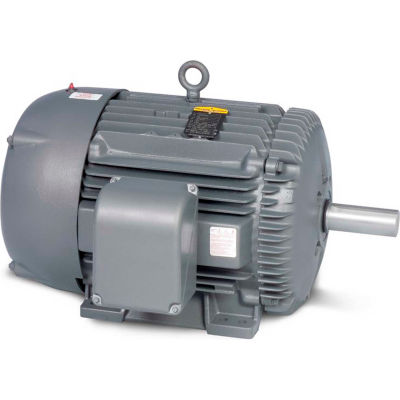

Baldor-Reliance Motor CTM1762T, 20HP, 1770RPM, 3PH, 60HZ, 256T, TEFC, FOOT

Baldor-Reliance Motor CTM1762T, 20HP, 1770RPM, 3PH, 60HZ, 256T, TEFC, FOOT

Item #: WBB388333

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$4,667.00 up to 29% OFF

Price: $3,322.00

$553.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,322.00 or save 3% on purchase.

Quantity

Popular item in this category

Baldor-Reliance Motor CTM1761T, 15HP, 1770RPM, 3PH, 60HZ, 254T, TEFC, FOOT

Usually ships in 2 to 5 days

Not Yet Rated

$2,749.00

Customers Also Viewed

Baldor-Reliance Motor, 20HP,1770RPM,3PH,60HZ,256T,TEFC,FOOT,

Features:
  • Premium efficient severe duty multi-speed axial fan motors
  • Class F insulation, 1.15 service factor
  • Lip seal, shaft slinger, and T-drain in both ends
  • Electrical design is single winding variable torque
  • Double shielded ball bearings
  • Burndy type YA compression lead lugs
  • 3 year warranty
Typical Applications:
High moisture environment fan motor for mounting in the air stream of cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCTM1762T
  • HORSEPOWER20
  • MOTOR RPM 60Hz1770/885
  • VOLTAGE460
  • PHASE3
  • FRAME256T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS2S-1W-VT
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1770/885
  • MOUNTINGRigid
  • FULL LOAD AMPS23.6
  • SHAFT DIAMETER1.625
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6203
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES27
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH24.78
  • is_motorYes
  • LENGTH INCHES27
  • WIDTH INCHES19.5
  • HEIGHT INCHES19.5
  • WEIGHT LBS299
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.625
  • SHAFT LENGTH INCHES1.625
  • FL EFFICIENCY91
  • DESIGN CODE--
  • FL AMPS24.4/9.30
  • POLES4; 8
  • FRAME SIZE256T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEFC
