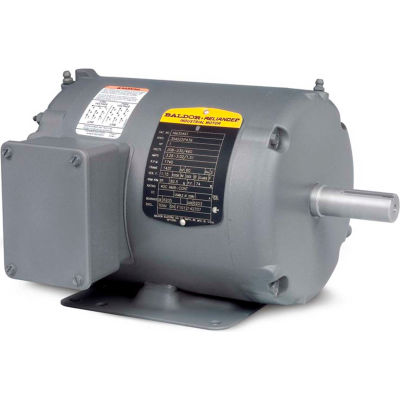

Baldor-Reliance Motor AOM3607T, 1.5HP, 1140RPM, 3PH, 60HZ, 182T, 3617M, TEAO, F

Baldor-Reliance Motor AOM3607T, 1.5HP, 1140RPM, 3PH, 60HZ, 182T, 3617M, TEAO, F

Item #: WBB388852

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$631.00 up to 20% OFF

Price: $505.00

$84.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $505.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1.5HP,1140RPM,3PH,60HZ,182T,3617M,TEAO,F

Features:
  • Locked drive end bearing construction
  • Bearings sized for larger overhung loads for fan on shaft applications
  • Leads 36
Typical Applications:
Motors are designed for In the Airstream and fan on shaft applications.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERAOM3607T
  • HORSEPOWER1 1/2
  • MOTOR RPM 60Hz1140
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME182T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1140
  • MOUNTINGRigid
  • FULL LOAD AMPS5.5/5.0/2.5
  • SHAFT DIAMETER1.125
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6203
  • OPPOSITE END BEARING SIZE6205
  • INSULATION CLASSF
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES19
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH13.62
  • is_motorYes
  • LENGTH INCHES19
  • WIDTH INCHES13.75
  • HEIGHT INCHES13.75
  • WEIGHT LBS50
  • RPM RANGE1101-1200
  • SHAFT DIAMETER INCHES1.125
  • SHAFT LENGTH INCHES1.125
  • FL EFFICIENCY78.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6205
  • FL AMPS5.5-5/2.5
  • FRAME SIZE182T
  • POLES6
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
