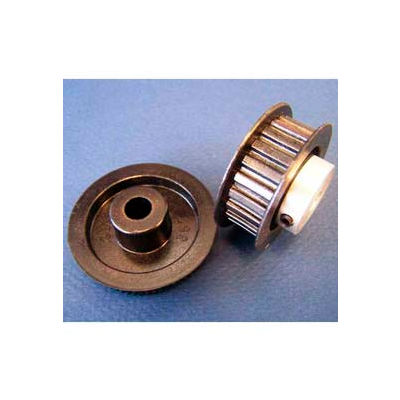

Plastock® Timing Belt Pulley 16xl037sfah1s, Lexan, Al Hub, Sgl Flange, 1/5 Ptch, 16 Teeth

Plastock® Timing Belt Pulley 16xl037sfah1s, Lexan, Al Hub, Sgl Flange, 1/5 Ptch, 16 Teeth

Item #: WBB782877

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 39

Price: $5.60

Save $0.28 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Plastock® Timing Belt Pulleys 16XL037SFAH1S, Lexan, AL Hub, Single Flange, 1/5 Pitch, 16 Teeth
Features

  • Plastock Timing Belt Pulleys are injection molded Polycarbonate or Acetal
  • 0.0800 Pitch (MXL)
  • 0.0816 Pitch (40DP)
  • 1/5 Pitch (XL)
  • 3/8 Pitch (L)
  • 3 & 5MM Pitch (HTD)
  • Available in Single and Double Flange, with or without aluminum hubs.

Product Specifications

  • # OF TEETH16
  • MANUFACTURERS PART #16XL037SFAH1S
  • PITCH INCHES1/5 (XL)
  • MATERIALLexan W/Aluminum Hub
  • BRANDPlastock
  • FOR BELT SIZE INCHESUp To 3/8
  • WEIGHT LBS0.043
  • STOCK BORE (B) INCHES0.25
  • SET SCREW SIZE8-32
  • FLANGE (FD) INCHES1.24
  • PITCH DIA. INCHES1.019
  • OUTER DIA. INCHES0.999
  • HUB PROJ. INCHES0.25
  • LENGTH INCHES13/16
  • FLANGESingle
  • WIDTH INCHES0.44
  • HUB DIA. (H) INCHES0.75
