For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.
- Practical package for universal use.
- The thin pulling hooks are suitable for narrow, difficult-to-access locations.
- A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
- Variable reach thanks to optional jaw extensions.
- Can be installed on various pulling hooks.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- 2-arm cross bar with hexagonal profile for good grip.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
- Stability support from optional series 219 clamp.
- Complete easy-to-manage package.
- KUKKO-L-Boxx-System compatible with systems by all common manufacturers.

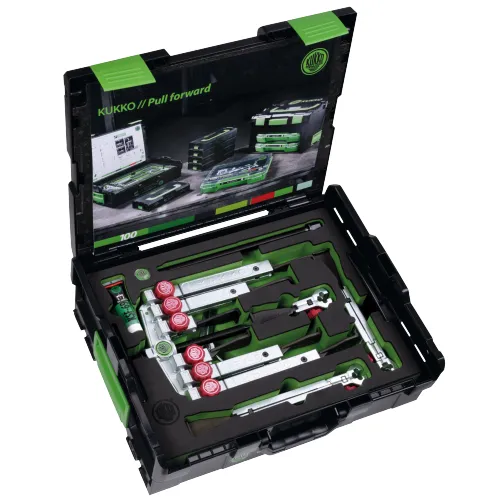

8 in 1 kit in the tried-and-tested KUKKO-L-Boxx-System. The set facilitates the assembly of eight different pulling device models through the combination of pulling jaws and extensions. Flexibility assured thanks to two-arm or three-arm design. Thin pulling jaws in various lengths with quick-adjusting capability. Jaw extensions. Parallel pulling hooks in every position, even with full load. Pulling hooks with infinitely variable adjustment on the cross-beam. Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip). Short and long mechanical pressure screws. Milled thread treated with special coating. If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller. Instructions on the cover. Secure storage in special foam. Personal KUKKO-Chip-Code.
- Spread Used Internal 2 3/4 - 7 1/8 "
- Hexagon Drive (Male) (Metric) 17mm
- Maximum Torque (Metric) 35Nm
- Depth (Metric) 100 - 350mm
- Spread Used Internal (Metric) 70 - 180mm
- Maximum Load (Metric) 2, 5 - 3t
- Spread (Metric) 120, 130mm
