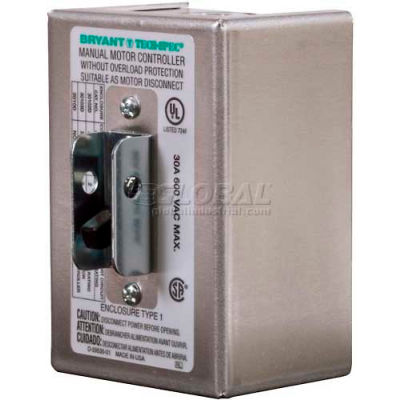

NEMA 1 Enclosed Switch Motor Controllers are ideal for use in industrial environments, i.e. conveyer systems, industrial fans, etc.
Weights & Dimensions
- Width 3.2 in
- Length 4.72 in
- Depth 2.41 in
- Weight 1.05 lbs
Product Details
- 600V AC 15
- 120V AC 2
- 480V AC 10
- Terminal Torque 20 INCH POUNDS
- Flammability Rating UL94HB/VO
- Amperage 30 A
- Box Enclosure NEMA 1 ALUMINUM
- Short Circuit Withstand Rating As Motor Controller 125A MAX RK5 FUSES
- Product Type Motor Control SW T
- Poles 2
- Short Circuit Withstand Rating as Motor Disconnect 60A MAX J FUSES 10,000 RMS
- Electrical Life 6,000 CYCLES AT RATED SWITCH LOAD
- Terminal Accomodations AWG MIN. #14 - AWG MAX. #10
- Dielectric Voltage 2,200V AC MINIMUM FOR 1 MINUTE V
- Phase 1
- 240V AC 5
- Max Voltage 600V AC RMS V
- Brand Bryant
- Operating Temperature Range MAX. CONTINUOUS 60 DEG. C., MIN. CONTINUOUS W/OUT IMPACT -40 DEG C. °C
Compliance & Certifications
- UL Certification UL 508 Industrial Control Equipment File # E70402
- CSA Listing CSA-C22.2 No. 14 Industrial Control Equipment File # LR-46186
