Corepoint Scientific

Model # :WBB2299309

MPN #: NSWDUF211JWJ-1

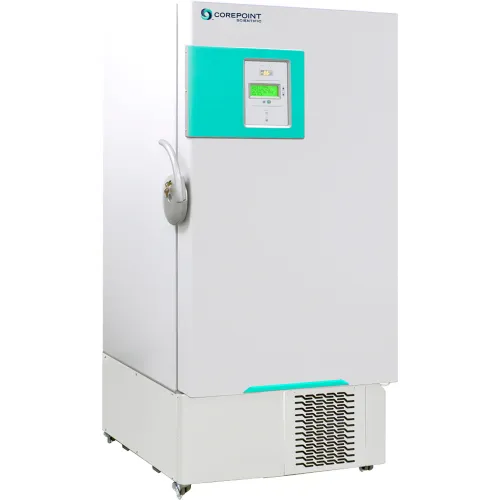

CorePoint Scientific White Diamond Series Ultra-Low Temperature Freezer, 21 Cu. Ft., 230V

Product Description
Features:
  • White Diamond Series Ultra Low Temperature Freezer
  • 21 Cu.Ft. Capacity
  • One solid swing exterior door, right hinged, not reversible
  • Five insulated inner doors
  • Microprocessor controller specifications
  • Touch pad keys and four line display for easy programming
  • Large LED temperature readout
  • Audible and visual alarms with silence key for audible alarms
  • Programmable high and low temperature alarm set points
  • Programmable access code to limit access to set points and controller configuration
  • Automatic voltage boost to compensate for low line voltages
  • Normally open, normally closed alarm contacts and 4-20mA signal available to connect to central alarm system
  • RS-232 serial output
  • Battery backup on electronics during power outages
  • Temperature range: -50°C to -86°C
  • Five internal storage compartments with four heavy duty reinforced stainless steel shelves, shelves are adjustable in 1/2" increments
  • Cam action handle for one hand latching of exterior door
  • Handle supplied with key lock and door switch for audible and visual alarms
  • Four heavy duty swivel casters with locks
  • Vacuum relief port for quick access after door closures
  • CFC-free refrigerant
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • Exterior Dimensions: 43.3"W x 36.3"D x 79.6"H
  • Interior Dimensions: 29.1"W x 23"D x 50"H
  • 2" Box Capacity: 400 ea.
  • Upright Freezer Rack Capacity: 25 ea. UF442 racks
  • 230V, 60Hz, 10 amp, HP: 1/2 x 1/2
  • UL/C-UL listed
  • NEMA Plug Configuration: NEMA 6-15
  • Cascade refrigeration system


PRICE
$15,999.00

1
1
Ships in 45 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width43-1/4 in
Depth36-1/4 in
Height79-5/8 in

Product Details

Cabinet Color FamilyGray
Lock TypeKey Lock
Number of Adjustable ShelvesYes
Door TypeSolid
Defrost TypeManual
Chamber Color FamilyWhite
Number of Shelves4
Manufacturers Part NumberNSWDUF211JWJ-1
BrandCorepoint Scientific
TypeUltra Low Temperature Freezer
Horsepower1/2 x 1/2 HP
ColorWhite
Amperage10 A
Hertz60 Hz
CastersYes
Temperature Range-50 to -86 °C
StyleUpright
Commercially ListedNo
Capacity21 ft³
Number of Doors6
Voltage230 V
Package Quantity1
DescriptionWhite Diamond Series Ultra Low Temperature Freezer
Number of Compartments5
Door StyleSwing Door
Refrigerant TypeCFC-Free

Warranty

Warranty2 Years Parts and Labors, 3 Years Compressor Parts

Compliance & Certifications

CertificationsUL/C-UL Listed
ADA CompliantNo
