Actual product may differ from image shown

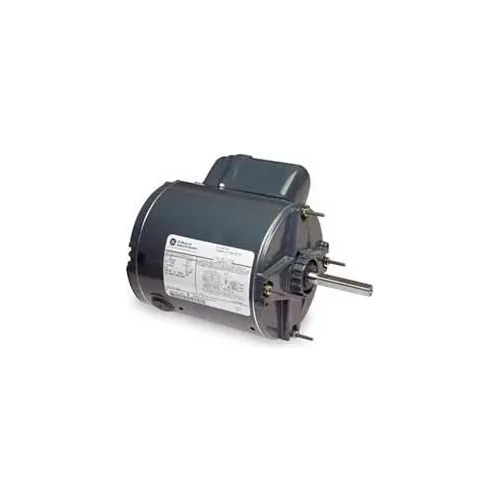

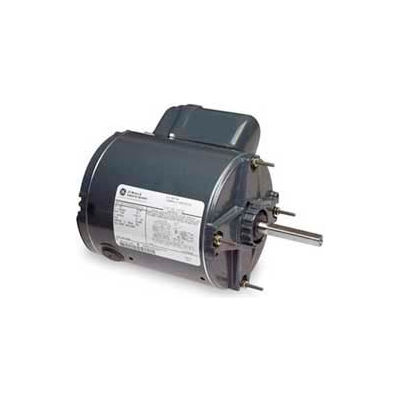

Marathon Motors P250, 1/4HP, 115/230V, 1625RPM, 1PH, TENV, 48Z FR
These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.
These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.
- HORSEPOWER 1/4
- ENCLOSURE TENV
- FRAME 48Z
- BRAND Marathon Motors
- MOUNTING Resilient Base/Stud
- MOTOR RPM 60Hz 1625
- RPM 1625
- PHASE 1
- VOLTAGE 115/230
- SERVICE FACTOR 1
- THERMAL PROTECTION Automatic
- AMBIENT TEMP C 40
- ROTATION CCW
- ENCLOSURE TYPE Totally Enclosed
- OPPOSITE END BEARING Ball
- WEIGHT 16
- UL Y
- DUTY Continuous
- MANUFACTURERS PART NUMBER P250
- RPM RANGE 1501-1700
- INSULATION CLASS B
- FL AMPS 3.6/1.8
- OPPOSITE END BEARING SIZE Ball
- DRIVE END BEARING SIZE 6203
- BEARING-DRIVE-END 6203
- ORIENTATION Horizontal or Vertical
- STARTING TYPE Squirrel Cage Induction
- CATALOG NUMBER P250
- FL EFFICIENCY 0
- KVA-CODE J
- is_motor Yes
- MODEL NUMBER 5KCP35KNB057S
Customer Review
Product Q & A
There are no questions for this product.
Marathon Motors P250, 1/4HP, 115/230V, 1625RPM, 1PH, TENV, 48Z FR
$155.95
