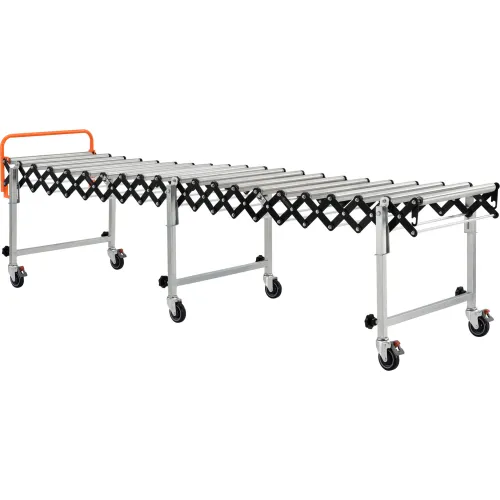

Global Industrial™ PORTABLE FLEXIBLE & EXPANDABLE CONVEYOR
Retracts to 2'8" to Save Space!
Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable roller gravity conveyor expands from 2'8" to 8'6" and is ideal for material with flat or complex bottoms. Rugged 5/16" steel axles and 1-3/8" dia. galvanized steel rollers, sealed bearings and spring loaded axles offer smooth material flow. 175 lbs. per foot capacity. 5-1/4" axle centers for 11" minimum package size. Zinc plated 12 gauge steel legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. All units bend around a 12" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily. 1 Year Limited Warranty.
Global Industrial
Model # :WB988987
Global Industrial™ 24 W Steel Roller Conveyor, Portable & Expandable, 2'8" to 8'6"L
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,049.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Width | 24 in |
| Height | 39-3/8 in |
| Weight Capacity | 175 lbs |
| Weight | 151 lbs |
| Min Leg Height | 31-3/4 in |
| Max Leg Height | 40-1/2 in |
| Roller Diameter | 1-3/8 in |
| Between Frame Width | 24 in |
| Caster/Wheel Size | 4 in |
| Axle Center | 5-1/4 in |
| Inside Radius | 12 in |
| Adjustable Length | 2'8" to 8'6" |
Product Details
| Assembly Required | Yes |
| Type | Gravity Roller Conveyor |
| Color | Silver |
| Material | Steel |
| Rollers Per Section | 21 |
| Manufacturers Part Number | 988987 |
| Leg Sets per Unit | 3 |
| Wheel/Roller Material | Galvanized Steel |
| Brand | Global Industrial |
Warranty
| Warranty | 1 |
