Baldor-Reliance Pump Motor, VHECP2333T, 3 Phase, 15 HP, 230/460 Volts, 1765 RPM, 60 HZ, TEFC, 254HP

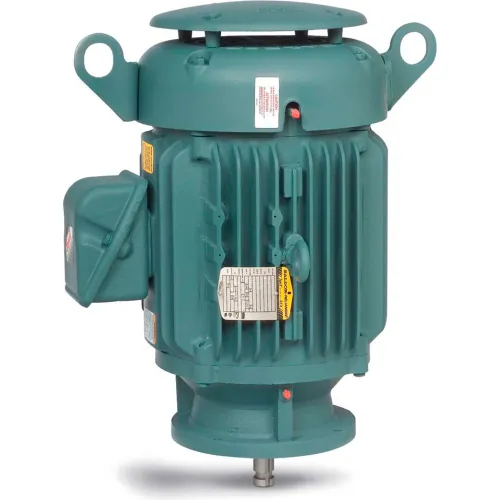

Actual product may differ from image shown

Baldor-Reliance Pump Motor, VHECP2333T, 3 Phase, 15 HP, 230/460 Volts, 1765 RPM, 60 HZ, TEFC, 254HP

Item #: WBB910252

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,281.00

$546.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Pump Motor, VHECP2333T, 3 Phase, 15 HP, 230/460 Volts, 1765 RPM, 60 HZ, TEFC, 254HP

Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.

Features
  • Corrosion resistant epoxy finish
  • Cast iron construction
  • Designed for vertical mounting
  • Rotatable conduit box
  • Stainless steel nameplates
  • Shaft seals
  • Energy efficient windings
  • Two lifting lugs
Application(s)
  • For medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications.

  • HORSEPOWER 15
  • ENCLOSURE TEFC
  • FRAME 254HP
  • BRAND Baldor-Reliance
  • MOTOR RPM 60Hz 1765
  • RPM 1765
  • PHASE 3
  • VOLTAGE 230/460
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER VHECP2333T
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • C-DIMENSION INCHES 25.73
  • TYPE Pump Motor
  • BEARING-OPP-DRIVE-END 6208
  • FL AMPS 36.2/18.1
  • DOE-CODE 010A
  • BALDOR CATALOG NUMBER VHECP2333T
  • DESIGN CODE A
  • BEARING-DRIVE-END 6311
  • SPEC. NUMBER 09G604Z910
  • FL EFFICIENCY 92.4
  • POWER-FACTOR 83
  • is_motor Yes
  • KVA-CODE H
  • 208V AMPS 38
