Marathon Motors Severe Duty Motor, E490, 286TSTFNA6804, 30HP, 230/460V, 3600RPM, 3PH, 286TS FR, TEFC

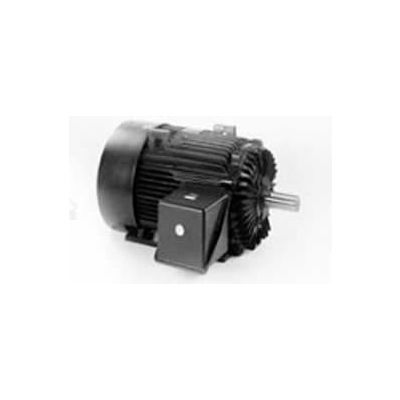

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E490, 286TSTFNA6804, 30HP, 230/460V, 3600RPM, 3PH, 286TS FR, TEFC

Item #: WBB869936

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,265.00

$377.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Severe Duty Motor, E490, 286TSTFNA6804, 30HP, 230/460V, 3600RPM, 3PH, 286TS FR, TEFC

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

  • HORSEPOWER 30
  • ENCLOSURE TEFC
  • FRAME 286TS
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 3600
  • RPM 3600
  • PHASE 3
  • VOLTAGE 230/460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6210
  • WEIGHT 514
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E490
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 20:1
  • FL AMPS 67.5/34
  • OPPOSITE END BEARING SIZE 6210
  • DRIVE END BEARING SIZE 6311
  • ASSEMBLY F1 (F2 Modification Available)
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 6311
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 93.6
  • KVA-CODE G
  • is_motor Yes
  • 60 HERTZ kW 22.4
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 286TSTFNA6804
