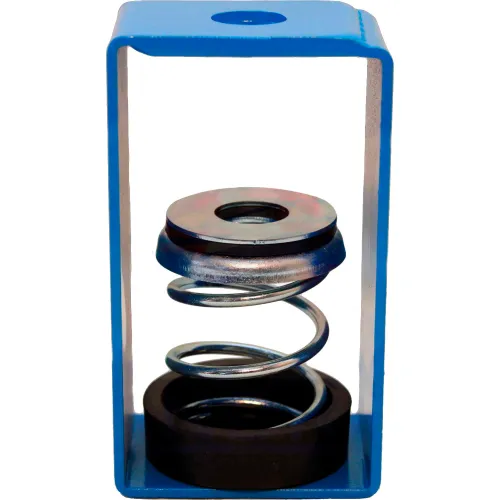

Andre SHD-102 - Spring Hangers 3"L x 2-1/4"W x 5-1/2"H

An excellent general purpose double deflection LDS Rubber hanger for ceiling suspended mechanical equipment and piping. LDS (Low Dynamic Stiffness) Rubber is a special Natural Rubber compound known for its excellent aging characteristics. This hanger is most effective for reducing noise transmission and vibration from equipment running above 1000 rpm. When the location is critical or greater vibration reduction is important, refer to Spring Vibration Isolation Hangers. Max Load 190-380 LBS. 3-1/4"L x 4-1/5"W x 4-1/2"H Overall Dimensions.

Steel spring reduces vibration transmissions most efficiently as performance improves with larger deflections. Spring deflections are 2 - 6 times better than the rubber products. Hangers have LDS Rubber cups under the springs and a projecting rubber bushing prevent sound transmission, even if hanger rods are not perfectly centered. Max Load 750-1000 LBS. 4"L x 4-3/4"W x 7-1/4"H Overall Dimensions.

Steel spring reduces vibration transmissions most efficiently as performance improves with larger deflections. Spring deflections are 2 - 6 times better than the rubber products. Hangers have LDS Rubber cups under the springs and a projecting rubber bushing prevent sound transmission, even if hanger rods are not perfectly centered. Max Load 130-200 LBS. 2-3/4"L x 3-3/4"W x 5-3/4"H Overall Dimensions.

Steel spring reduces vibration transmissions most efficiently as performance improves with larger deflections. Spring deflections are 2 - 6 times better than the rubber products. Hangers have LDS Rubber cups under the springs and a projecting rubber bushing prevent sound transmission, even if hanger rods are not perfectly centered. Max Load 130-175 LBS. 2-1/2"L x 2-7/8"W x 4-1/4"H Overall Dimensions.

Type "X-100" series Spring Mounts with one inch deflection solves troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection of the spring. "X-100" series spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The mount features a two piece cast iron housing for the spring. The mounts are provided with slotted mounting holes with a non-skid elastomeric acoustic pad on the base for easy bolting to the floor. Resilient elastomeric snubbers on the inner panels prevent ...
