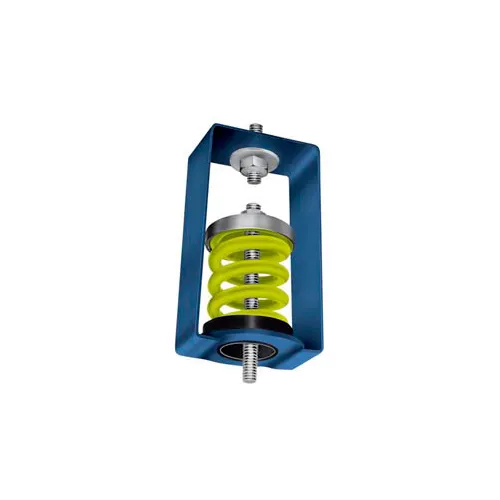

Spring Vibration Isolation Hanger - 4"L x 4-3/4"W x 7-1/4"H Blue

SHB series spring hangers are large diameter steel springs housed in rectangular steel brackets. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled.NOTES:Bracket: Blue powder coatedSpring: Hot dip galvanizedDesign allows angular hanger misalignmentHanger rods and nuts not included

An excellent general purpose double deflection LDS Rubber hanger for ceiling suspended mechanical equipment and piping. LDS (Low Dynamic Stiffness) Rubber is a special Natural Rubber compound known for its excellent aging characteristics. This hanger is most effective for reducing noise transmission and vibration from equipment running above 1000 rpm. When the location is critical or greater vibration reduction is important, refer to Spring Vibration Isolation Hangers. Max Load 190-380 LBS. 3-1/4"L x 4-1/5"W x 4-1/2"H Overall Dimensions.

Vibra Systems AVH-2-70 - Antivibration Rubber Hanger 165 Max Lbs 1/2" Deflection Blue HND Series hangers are neoprene elements housed in sturdy steel. Elements include top and bottom steel plates for uniform load distribution. "D" stands for double deflection for neoprene elements, single deflection element are ineffective for vibration isolation and are not available. All elements are color coded for ease of identification. HND Series hangers are used for hanging small machines like fan coil units and fans etc.

Steel springs housed in rectangular steel brackets. Assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These springs hangers are normally used in critical areas where noise and vibration need to be controlled. NOTES: Bracket: Powder coatedSpring: Hot dip galvanizedDesign allows angular hanger misalignmentHanger rods and nuts not included

HSA series spring hangers are large diameter steel springs housed in rectangular steel housings. Assembly incorporates dual (steel & elastomer) washers for uniform load distribution and high frequency isolation. Springs have a 50% additional travel to solid load as per the ASRAE recommendations. Spring hangers are used for hanging fan coil units, air handling units, fans, pipes, and ducts. These spring hangers are normally used for critical areas where noise and vibration both need to be controlled.
