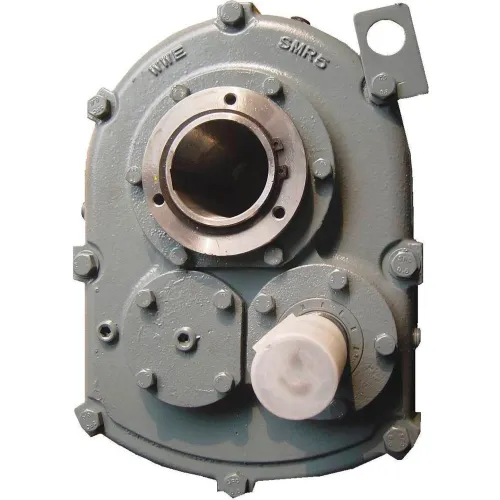

Worldwide Electric SMR2-15/1, Shaft Mount Reducer, Size 2, 15:1 Ratio, 1-15/16 Tapered Bore

Worldwide Electric SMR7-15/1, Shaft Mount Reducer, Size 7, 15:1 Ratio, 3 15/16" Tapered Bore The "Original" Shaft Mount Reducer, Box size 7, 15:1 ratio, 3-15/16" Output bore (max.), Tapered bushing type (Tapered bushing not included); Torque arm included; 2 year warranty; dimensional drop-in for a Dodge TXT series; shafts and gears manufactured from high grade steel, case hardened and precision ground to A.G.M.A. standards; metal reinforced double lip, spring loaded oil seals.

SMR915RBKIT, Rebuild kit for an "Original" style shaft mount reducer SMR9-15/1 SMR915RBKIT, Rebuild kit for an "Original" style shaft mount reducer SMR9-15/1; Box size 9; 15:1-Ratio; Sold as a kit only; Kit includes high speed input shaft, first gear reduction, input bearings, input seal, output seal

Worldwide Electric SMR6-15/1, Shaft Mount Reducer, Size 6, 15:1 Ratio, 3 7/16" Tapered Bore The "Original" Shaft Mount Reducer, Box size 6, 15:1 ratio, 3-7/16" Output bore (max.), Tapered bushing type (Tapered bushing not included); Torque arm included; 2 year warranty; dimensional drop-in for a Dodge TXT series; shafts and gears manufactured from high grade steel, case hardened and precision ground to A.G.M.A. standards; metal reinforced double lip, spring loaded oil seals.

Cast-Iron, Helical Bevel Speed Reducers are available in box sizes 37-97 to support 1/4 HP to 30 HP NEMA frame motors in speed ratio's from 5:1 to 120:1. The units have NEMA motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. Available in foot-mounted (KHN), torque arm mounted (KAN), or B5/B14 flange mounted (KAN) styles. Single shaft and double shaft output kits available.

Cast-Iron, Helical Bevel Speed Reducers are available in box sizes 37-97 to support 1/4 HP to 30 HP NEMA frame motors in speed ratio's from 5:1 to 120:1. The units have NEMA motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. Available in foot-mounted (KHN), torque arm mounted (KAN), or B5/B14 flange mounted (KAN) styles. Single shaft and double shaft output kits available.
