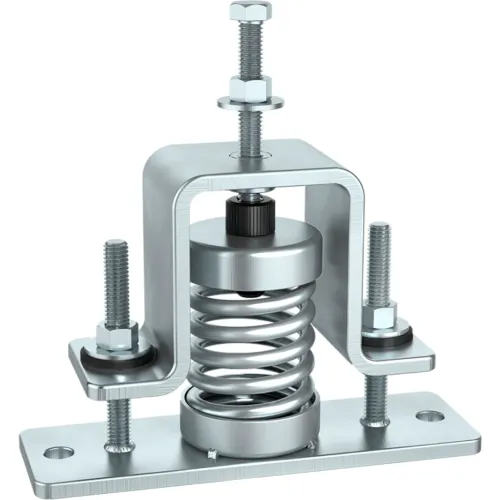

Vibra Systems Inc. SMSR-AT-172 2" Deflection Open Spring Mount Isolator W/ Mounting Bolt

Neoprene Mounting is a better isolator than isolation pads because they are thicker (taller) and provide more deflection. Top bolts and washers are provided for bolting to the equipment. The neoprene friction covering on the bottom generally eliminates bolting to the structure. This excellent all-purpose oil resistant mounting is used under compressors, blowers, air conditioning equipment, pumps, machine tools, transformers, etc. Used in compression only. Max Load 300-600 LBS. 3-7/8"L x 2-5/16"W x 1-7/8"H Overall Dimensions.

Neoprene Mounting is a better isolator than isolation pads because they are thicker (taller) and provide more deflection. Top bolts and washers are provided for bolting to the equipment. The neoprene friction covering on the bottom generally eliminates bolting to the structure. This excellent all-purpose oil resistant mounting is used under compressors, blowers, air conditioning equipment, pumps, machine tools, transformers, etc. Used in compression only. Max Load 60-125 LBS. 3-3/16"L x 1-5/8"W x 1-1/2"H Overall Dimensions.

These mounts are ideal for a wide range of installations where simple and precise leveling is required. Diamond cell neoprene pads provide a firm grip to the floor. The VMT mount is self - aligning without sacrifice to stability and compensates for slightly uneven floors. A neoprene pad fits tight in a cast iron cover cavity preventing separation the of pad and cover which eliminates reliance on adhesives. A load range of up to 12000 lbs. with the leveling feature makes this mount very popular for numerous industrial applications. Features: Controls vibration and noise Resistant to oil ...

Steel springs reduce vibration transmission most efficiently as performance improves with larger deflections. Minimum deflection is 0.75" which increases with heavier loadings. Spring deflections are 2 - 6 times higher than the rubber products. IMF Unhoused Simple Spring Mount works best for indoor applications on lightweight equipment that does not have to be completely level and does not need to be bolted down. Max Load 230-310 LBS. 5-3/4"L x 2-1/8"W x 4-1/2"H Overall Dimensions.

FMD Double deflection - compression mounts have great elasticity in axial-radial direction and provide excellent isolation from vibration and noise. This model is designed for compression loads and is not recommended for shear or tension load. Maximum recommended shock loads should not exceed 50% of maximum vertical load. Recommended Use: Motors, fans, pumps, compressors, transformers, electrical, lab-testing equipment, and cabinet enclosures, as well as HVAC and other industrial appliances.
