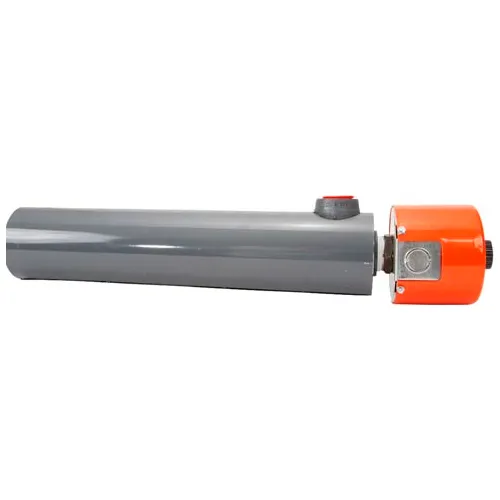

Tempco Immersion Heater,Circulation,1500W,120/1
This Tempco Circulation Heater features a NEMA 1 Terminal Housing with a copper finish. Made in the USA.
Share
Spec Sheet
Tempco Immersion Circulation Heater, CHF02155, 1500W 120/1
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,339.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 18 in |
| NPT | 1-1/4 in |
Product Details
| Temperature Control Range | 60/180 °F |
| Type | Circulation Heater |
| Sheath Material | Copper |
| Wattage | 1500 W |
| Voltage | 120 V |
| Watt Density | 34 W |
| Phase | 1 |
| Manufacturers Part Number | CHF02155 |
| Housing | NEMA 1 |
| Brand | Tempco |
