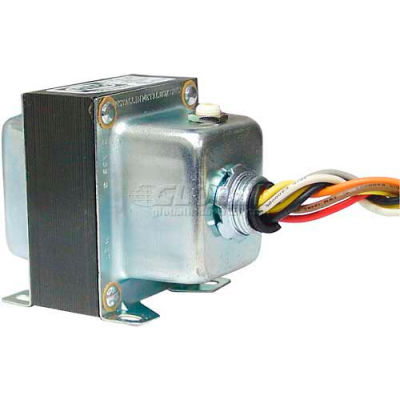

RIB® Transformer TR50VA015, 50VA, 480/277/240/208/120-24V, 1 Hub, Foot Mount, Circuit Breaker
Transformers ranging from 20VA to 375VA are foot and/or hub mounted. They are available with single or dual threaded hubs. Some are foot mounted only. Most are UL Listed or UL Component Recognized, and many are Class 2. Several transformers are provided with a circuit breaker. Pigtail wires are standard on all models and are up to 9.5" in length. All transformers utilize split-bobbin construction.
Transformers ranging from 20VA to 375VA are foot and/or hub mounted. They are available with single or dual threaded hubs. Some are foot mounted only. Most are UL Listed or UL Component Recognized, and many are Class 2. Several transformers are provided with a circuit breaker. Pigtail wires are standard on all models and are up to 9.5" in length. All transformers utilize split-bobbin construction.
Weights & Dimensions
- Width 2.525 in
- Length 3.475 in
- Height 3.04 in
- Wire Size 8 Typical With .5 Strip in
Product Details
- Operating Temperature -30° To 140°F
- Voltage 480/277/240/208/120-24 V
- Humidity Range 54 To 95 Percent (Noncondensing)
- Description Transformer
- Amperage 50 A
- Hub Style Single
- Wire Rating 600V
- Brand RIB
- Manufacturers Part Number TR50VA015
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications UL Listed
Customer Review
Product Q & A
There are no questions for this product.

RIB® Transformer TR50VA015, 50VA, 480/277/240/208/120-24V, 1 Hub, Foot Mount, Circuit Breaker
$34.95
