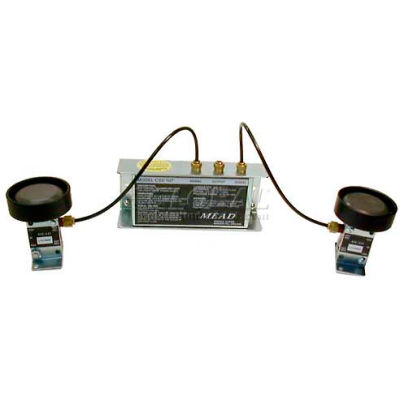

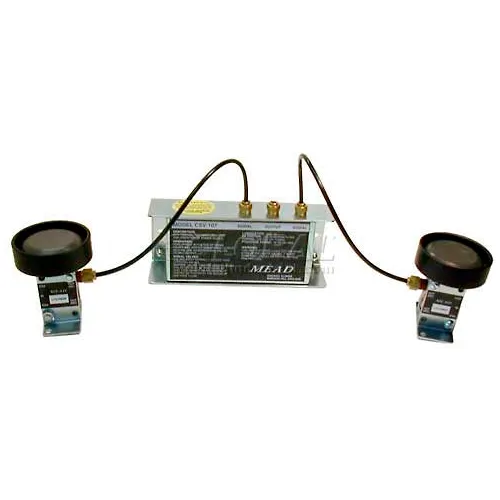

For Safer Operation of Your MachineryCSV-107LS2 is a remote two-hand anti-tiedown control with low stress foot mounted signal valves. When used, they provide safer operation of air presses, drill fixtures, clamping fixtures, cylinders, valves, or light assembly equipment. Function of CSV's CSV-107LS2 is designed to actuate 3 or 4-way air piloted, spring return power valves or directly power smaller single-acting cylinders. A signal can only be initiated by concurrent actuation from two remote inputs. Releasing one or both buttons immediately stops the signal and the unit cannot recycle until both signals are again simultaneously actuated. (CV = 0.11)Push-to-connect fittings included.
Bimba-Mead Two Hand Control CSV-107LS2, Remote Logic Unit W/Low Stress Foot Mount Valve
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,265.00
1
1
Ships in 21 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 6-5/8 in |
| Width | 1-13/16 in |
| Height | 3 in |
| Port Size | For 5/32 OD Tube in |
Product Details
| Thread Type | NPTF |
| Type | Two-Hand Control Valve |
| Operating Pressure Range | 70-100 PSI psi |
| For Use With | Air Press, Drill/Clamping Fixtures, Cylinders, Valves, Light Assembly Equipment |
| Seals | Buna N |
| Manufacturers Part Number | CSV-107LS2 |
| Function | Remote Logic Unit with 2 LTV-PBG Low Stress 4-way Valves for Foot Mounting |
| Fitting Material | Brass |
| Brand | Bimba-Mead |
