The PCK-SL Locking Screw Clamp is a versatile multi-purpose lifting, turning, pulling clamp capable of lift and turn operations from the horizontal through 180 degrees arc. The clamp can also be used for the assembling of steel plates, structural members and welded sections. The clamp is generally used in pairs for the purpose of drawing two plates or members together or to a pre-determined position adjacent to each other. The adjusting screw is used to accommodate various thicknesses of material and to facilitate the attachment of the clamp to the member being worked on. Made In The USA.

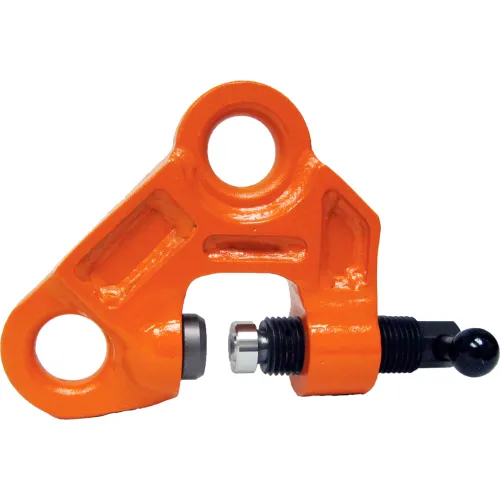

Renfroe Vertical Lifting, Locking, Screw Clamp, Orange, Steel, 6000 Lbs Cap, 3/16 - 1-3/8" Opening
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$4,995.00
1
1
Ships in 27 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 13 in |
| Width | 3 in |
| Height | 8 in |
| Weight Capacity | 6000 lbs |
| Weight | 17.9 lbs |
| Dimension K | 1-1/8 in |
| Dimension A | 3/16 - 1-3/8 in |
| Dimension B | 3-1/2 in |
| Dimension L | 9-1/8 in |
| Dimension J | 7/8 in |
| Dimension D | 6-11/16 in |
| Dimension E | 1-3/4 in |
| Dimension F | 12-1/8 in |
| Throat Depth | 3.5 in |
| Max Plate Thickness | 1.375 in |
| Dimension C | 8 in |
| Bail Opening | 1.75 in |
| Dimension H | 5-3/8 in |
| Grip Range | .1875 - 1.375 in |
| Dimension G | 2-5/8 in |
| Working Load Limit | 6000 lbs |
Product Details
| Assembly Required | No |
| Material | Steel |
| Manufacturers Part Number | PCK-SL-03.00-A |
| Brand | Renfroe |
| Type | Vertical |
| Color | Orange |
| Package Quantity | 1 |
Warranty
| Warranty | 2 |
Compliance & Certifications
| Certifications | ASME B30.20, BTH-1 |
