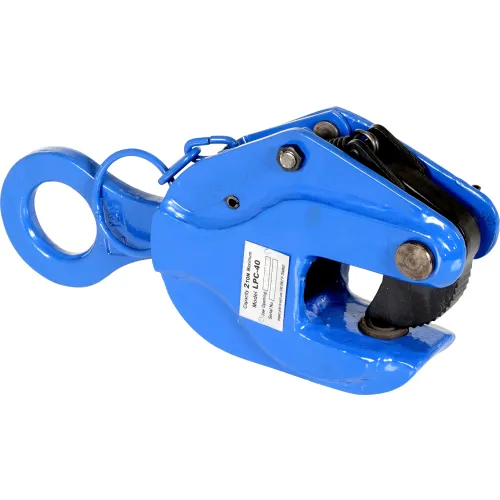

Locking Vertical Plate Clamp Lifting Attachment LPC-40 4000 Lb. Capacity

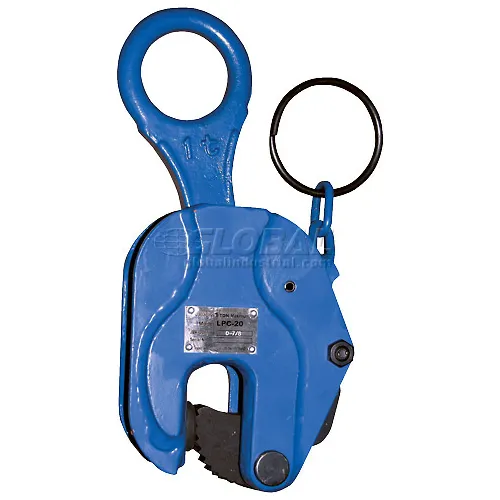

Vertical Plate Clamp with Chain Lifting Attachment 2000 Lb. Capacity Made of steel for long lasting durability. Easily lift plate material straight up in vertical positions. Lifting eye and chain provide greater versatility. Meets ASME B30.20 specifications. Color finish isBlue. Capacity is2,000 lbs. Max plate thickness is0.8". Throat depth is3". Bail opening is3". Note: Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

Camlok CY Hinged Universal Plate Clamp, 450-2200 Lbs., 0"-3/4"Jaw Hinged hook ring enabling the clamp to be used at any angle Fitted with a cam operated closing mechanism that can be replaced with a chain pull open/close mechanism Fitted with hardened serrated teeth jaws and pads that are suitable for gripping steel

The beam clamp horizontal lift style is designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. This versatile unit can be interchanged from one gantry to another in a matter of seconds. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Painted finish. Features: Manual locking screw mechanism easily adjusts width Unique design provides a fixed-position lifting point Mechanical adjustment Solid steel construction provides long lasting rugged use

PALTE CLAMP, HINGE TOP, 1.5"-3", 11,000 LB WLL, is manufactured to exceed all ASME B30.20 and OSHA regulations. Powder coated safety yellow for increased visibility, proof loaded and shipped with certification paperwork. Made in USA.

The Model JPA is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180 degree arc. Incorporates a push button auxiliary lock. Permits side loading of lifting shackle to 90 degrees by derating clamp's rated capacity. Model JPA incorporates a pivoting shackle that permits side loading of the lifting shackle at 100 percent of rated capacity from vertical to 30 degrees, 75 percent of rated capacity between 30 and 45 degrees and 50 percent of rated capacity between 45 and 90 degrees. Made In The USA.
