Baileigh Industrial

Model # :WBB3055500

MPN #: BA9-1008136

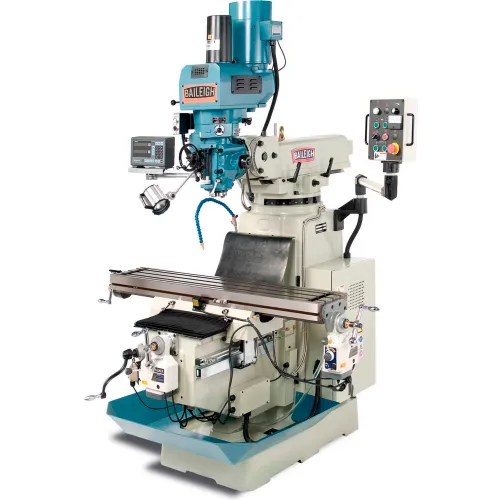

Baileigh Industrial Vertical Mill, 3 HP, 3 Phase, 220V, VM-1054-3

Product Description
Table size is very important when deciding which milling machine to buy. The VM-1054 from Baileigh Industrial has a 10" x 54" table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion.The VM-1054 is a variable speed milling machine that is powered by a Yaskawa® inverter. This inverter is powered by 220 volts of three phase power. Inverters are great for milling machines because of their ability to be adjusted to any speed desired between 80 and 3800 rpm. By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money. Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well. A larger spindle is stronger and has tighter tolerances over a longer period of time. Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame. The stronger you make he platform the better the cutting is.All three axis are powered on the VM-1054 making it easy on the operator. Another nice feature of the VM-1054 milling machine is the two axis digital readout that comes standard. This Mitutoyo® digital readout is accurate to 1/10 of 1 thousandth of an inch. A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054.To learn more about the VM-1054 milling machine call a Baileigh Industrial representative.

PRICE
$37,045.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Table Size (L x W)54 x 10 in
Max Lift of Beam2.5 in
T-Slots Number And Size3@.625 in
T-Slot Centers2.5 in
Table Longitudinal Travel35-7/16 in
Travel Of Knee16 in
Table Cross Travel15-3/4 in
Distance Spindle To ColumnVariable in

Product Details

No Load Speed3600 RPM
PowerfeedYes
Number of Spindle SpeedsVariable Speed
Work Table Weight Capacity550 lbs lbs
Motor Voltage220 V
Country of OriginImport
DROMititoyo
Range of Spindle Speeds80 to 3800 rpm
Phase3
Head Movement (Degrees)180° °
Manufacturers Part NumberBA9-1008136
Prewired220V Three
Motor Horsepower3 HP
Quill Down Feed Rates (IPR).0015" / .003" / .005"
BrandBaileigh Industrial

Warranty

Warranty1 Year on Parts
