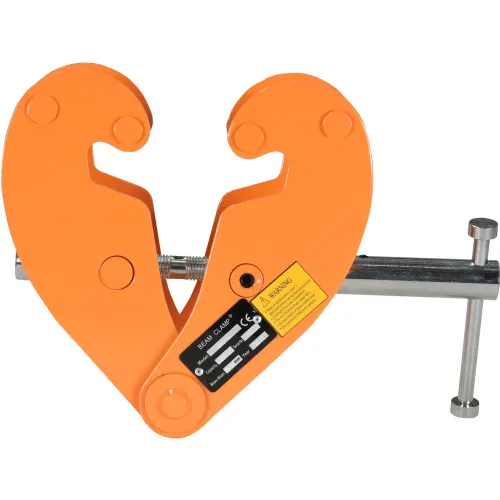

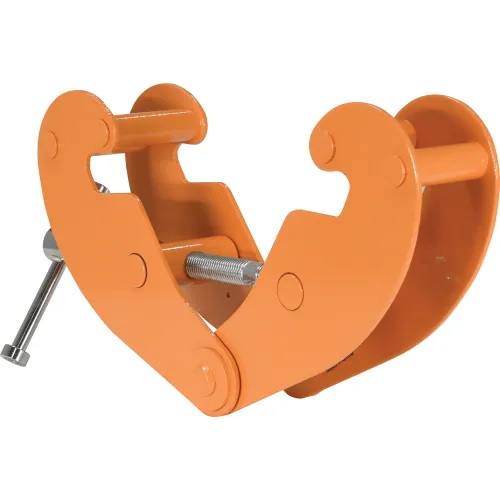

Beam Clamp - 2,000 Lbs. CapacityThis Beam Clamp is designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. This versatile unit can be interchanged from one gantry to another in a matter of seconds with its easy mechanical adjustment mechanism. A bar is located at the bottom of the beam clamp for attaching a hoist (not included). Steel construction and painted finish. 2,000 lb capacity.
Share
Spec Sheet
Beam Clamp BC-2 2000 Lb. Capacity
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$94.95
1
1
Bulk Pricing
Quantity
Pricing
Buy 1 unit - 2 units
94.95
Buy 3 units - 6 units
85.95Save $9.00 (9%)
Buy 7+ units
82.95Save $12.00 (13%)
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 16-1/2 in |
| Width | 3-1/2 in |
| Height | 6-1/4 in |
| Weight Capacity | 2000 lbs |
| Weight | 9 lbs |
| Beam Width | 3-1/8 to 9-5/8 in |
| Flange Width | 3-1/8 to 9-5/8 in |
Product Details
| Assembly Required | Yes |
| Type | Beam Clamp |
| Color | Orange |
| Material | Steel |
| Description | Beam Clamp |
| Manufacturers Part Number | BC-2 |
| Brand | Vestil |
