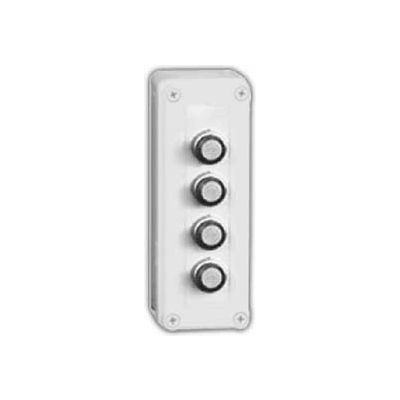

Vynckier VM933-PBM4 VM 9" X 3" X 3" Non-Metallic Enclosure, Four 22.5MM Push Button Holes
The VM Series range in size from from 4" x 3" to 9" x 3", varying depths, 13 sizes and a variety of configurations.The VM series "PB" enclosures include an opaque cover, pre-cut pushbutton holes (22.5MM or 30.5mm) and 4 non-metallic corner screwsOpaque covers and all bases are made of impact and corrosive resistant VALOX® 357U thermoplastic polyester, light grey (RAL7035).Molded internal bosses for back panel mounting of components or DIN rails.ASTM D 648 up to 280°F (138°C) heat deflection temperature.Tongue, groove gasket fitting to ensure a tight seal.Seamless poured polyurethane gasket provides oil-resistant, watertight, dust tight seal.VALOX® material is easily punched, drilled, sawed or filed.VALOX® is a crystalline thermoplastic polyester.VALOX® resin offers a performance profile engineered for demanding end-use environments.The VM Series enclosure is designed for use as insulated electrical junction boxes, terminal wiring boxes, instrument housings, electrical control boxes and pushbutton housings in wet, dusty and corrosive environments. StandardsProtection degree: IP66 (IEC 529) ApprovalsUL Listed types: 4, 4x, 3, 3R, 12, 13CSA Listed types: 4, 4x, 3, 3R, 12, 13NEMA Rating types: 4, 4x, 3, 3R, 12, 13
The VM Series range in size from from 4" x 3" to 9" x 3", varying depths, 13 sizes and a variety of configurations.The VM series "PB" enclosures include an opaque cover, pre-cut pushbutton holes (22.5MM or 30.5mm) and 4 non-metallic corner screwsOpaque covers and all bases are made of impact and corrosive resistant VALOX® 357U thermoplastic polyester, light grey (RAL7035).Molded internal bosses for back panel mounting of components or DIN rails.ASTM D 648 up to 280°F (138°C) heat deflection temperature.Tongue, groove gasket fitting to ensure a tight seal.Seamless poured polyurethane gasket provides oil-resistant, watertight, dust tight seal.VALOX® material is easily punched, drilled, sawed or filed.VALOX® is a crystalline thermoplastic polyester.VALOX® resin offers a performance profile engineered for demanding end-use environments.The VM Series enclosure is designed for use as insulated electrical junction boxes, terminal wiring boxes, instrument housings, electrical control boxes and pushbutton housings in wet, dusty and corrosive environments. StandardsProtection degree: IP66 (IEC 529) ApprovalsUL Listed types: 4, 4x, 3, 3R, 12, 13CSA Listed types: 4, 4x, 3, 3R, 12, 13NEMA Rating types: 4, 4x, 3, 3R, 12, 13
- BRAND Vynckier
- MANUFACTURERS PART NUMBER VM933-PBM4
- TYPE Enclosure
- CONSTRUCTION Non-Metallic
- NEMA RATING 3, 3R, 4, 4X, 12 and 13
- BACKPLATE PART NO. VMBP93
- TEMPERATURE RESISTANCE (F) +280
- TEMPERATURE RESISTANCE (C) +138
- INSIDE WIDTH INCHES 2.84
- HOLES 4 Push Button
- INSIDE DEPTH INCHES 3.31
- OUTSIDE HEIGHT INCHES 9.09
- OUTSIDE WIDTH INCHES 3.18
- OUTSIDE DEPTH INCHES 3.61
- SERIES VM
- INSIDE HEIGHT INCHES 8.74
