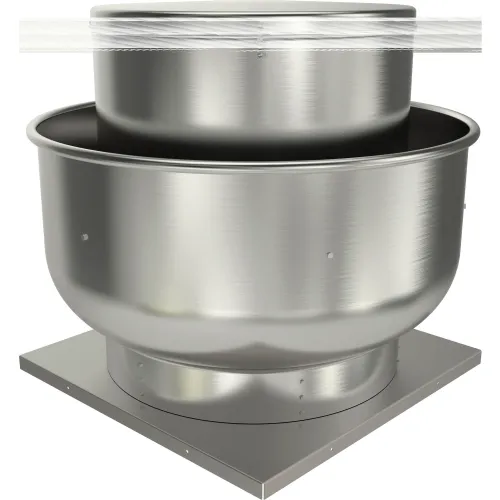

Fantech 12" Roof Ventilator Belt Drive Upblast 5BDU12CB-A, 1/3 HP, 115/230V, 1 PH, 1530 CFM, ODP
Belt-drive upblast ventilators are designed for roof mounted exhaust of commercial and industrial buildings. There models are both for roof and wall application (except 5BDU30 and 5BDU36). Durable spun aluminum construction with steel support braces. Backward inclined aluminum fan wheel. Motor and wheel are easily detachable without removing ventilator from curb. Permanently lubricated ball bearings (5BDU10 - 5BDU13) and regreasable pillow block bearings (5BDU15 - 5BDU24).
Features:
Belt-drive upblast ventilators are designed for roof mounted exhaust of commercial and industrial buildings. There models are both for roof and wall application (except 5BDU30 and 5BDU36). Durable spun aluminum construction with steel support braces. Backward inclined aluminum fan wheel. Motor and wheel are easily detachable without removing ventilator from curb. Permanently lubricated ball bearings (5BDU10 - 5BDU13) and regreasable pillow block bearings (5BDU15 - 5BDU24).
Features:
- All ventilators are listed UL 705 for electrical and UL 762 for restaurantexhaust in USA only
- Models 5DBU10 - 5BDU24 are suitable for wall application
- Inlet temperatures up to 300°F
- Fully welded windband
- Externally cooled motor compartment
- AMCA and cULus certified
Product Details
- Mounting Location Roof
- For Use With 5ACC01MS
- Drive Type Belt Drive
- Material Galvanized Steel
- Peak Fan Power Input 246 BHP
- Operating Temperature Up To 300°F
- RPM High 1,565 rpm
- Voltage 115 / 230 V
- Description Upblast Ventilator
- Speed Controllable N
- Horsepower 1/3 HP
- Motor Type ODP
- CFM High 1530 CFM
- Phase 1
- Watts 246 W
- Brand Fantech
- Warranty 2 yr
- Hertz 60 Hz
- Manufacturers Part Number 5BDU12CB-A
- Sones 12.7
Weights & Dimensions
- Width 26-1/2 in
- Fan Diameter 12 in
- Length 24-1/4 in
- Base Height 1-1/2 in
- Height 24-1/4 in
- Base Length 22 in
- Weight 124 lbs
Compliance & Certifications
- Certifications AMCA Air, AMCA Sound, UL Standard 705 & 762, Complies with NFPA 96
