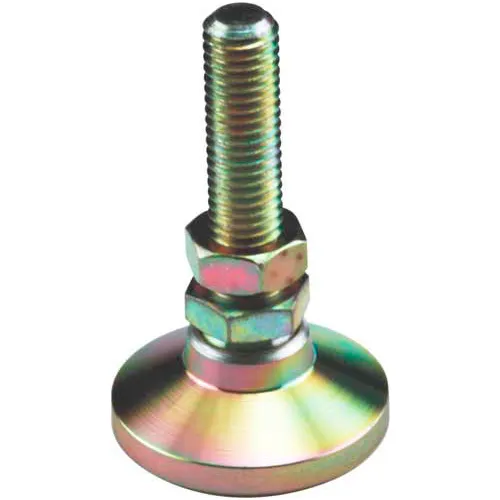

80/20 2200 Deluxe Leveling Foot

The deluxe leveling foot has a jam nut that allows it to pivot 20 degrees to accommodate uneven floors. There are options available with load capacities ranging from 1000-7400 pounds and 317-3357 kilograms. The deluxe leveling foot is a heavy-duty option ideal for large structures and commonly mounts to a profile with a base plate.

The Anti-vibration Leveling Foot is a foot with a high level of vibration and shock isolation. It has a non-skid elastomer pad with load capacities ranging from 300-4200 pounds and 136-453 kilograms. The Anti-vibraion Leveling Foot has a powder coated safety-yellow steel housing and is a heavy-duty option, perfect for industrial applications such as machine framing, automation solutions, and guards. It is recommended for use with leveling anchor base plates.

Features: Not compatible with 2mm thick pipes Can be adjusted up to 2 1/2" Increases stability for stationary structures Quick and easy installation Suitable for use in a wide variety of applications - flow-racks, workstations. Loading Capacity 485 lbs (220kg) A Flexpipe product

The economy leveling foot has a jam nut that allows it to pivot 20 degrees to accommodate uneven floors. It is a cost-effective option ideal for heavy-duty projects. There are options available with load capacities ranging from 1050-4700 pounds (475-2130 kilograms). The economy leveling foot can be mounted directly to a profile end or to the side or end with a base plate.

The AF-OLEV is a metal foot that increases stability and helps to even surfaces. It can be adjusted up to 2 1/2" inches and is compatible with our EP-96-ST stainless and SP-96-BL(2mm) pipes. Bolt M12 (12 mm) Length 4" (100 mm) The foot is installed on the outside of the pipe. Specifically designed to gain space by being able to be placed side by side to another structure or up against a wall. The AF-OLEV should be avoided on soft surfaces, where it can be replaced by the AP-ICAP or the AF-RUB.
