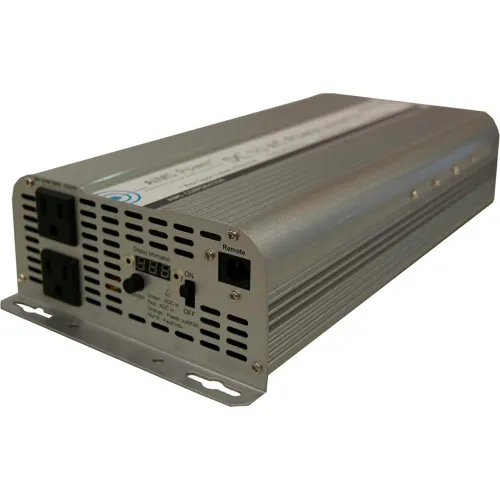

AIMS Power 2500 Watt Power Inverter, PWRINV250012W

The 2500 watt 12 volt AIMS Power inverter converts DC (direct current) power stored by deep-cycle batteries into AC (alternating current) electricity. This unit produces a modified sine wave, which is capable of running most-all tools and appliances. Use this product for off-grid, mobile and emergency backup power for lights, fans, space heaters, coffee makers, to charge electronic devices and much more. The features on this unit include over-temperature and over-load LED indicators as well as voltage and amperage meters used to monitor the usage of a battery bank. The unit also has a port for an optional remote.

Features:

• 2500Watt max continuous power
• 12 Volt Power Inverter
• Modified sine wave
• Volt meter on front panel to monitor your battery voltage
• Amp meter on front panel to monitor your current use (rate at which battery is drained)
• Over Temperature LED indicator
• Over Load LED indicator
• 2 AC receptacles (UL rated 1500 watts max per an outlet)
• On/off switch
• Over Temperature protection
• Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
• Auto reset on most fault conditions
• Aluminum case for optimal cooling
• Pre-wired for remote on/off switch
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support
• 1 Year Warranty Parts and Labor

Specifications:

• Continuous output power: 2500 Watts
• Surge power capability (peak power): 5000 Watts
• dc input / operating voltage: 10.5 to 17 Volts
• Output voltage: 120 Volts ac +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 60 Hz +/- 1 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 Volts
• Battery low voltage shutdown: 10 +/- 0.5 Volts
• No load current: < 0.2 Amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -15 degrees Celsius
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
• AC Output Socket Type: quadruple Type 2 -3 prong
• High input voltage protection: 17 volts
• Low input voltage shutdown: 10 volts
• Internal fuse protection
• Product size (L x W x H): 14.5"X 6.5"X 3.0rdquo;
• Weight: unit 6.1 lbs boxed 8 lbs
• UL maximum recommended per outlet 1500W
