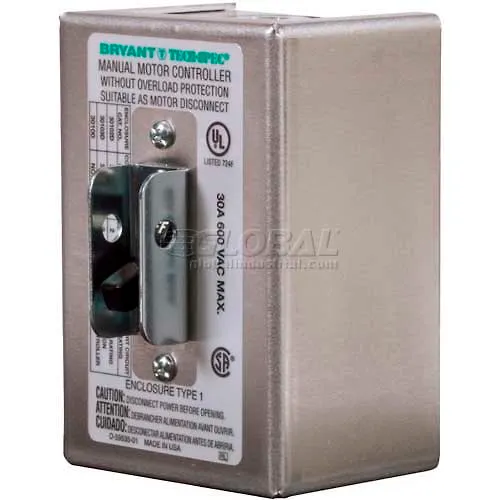

30 AMP NEMA 1 Enclosed Toggle Switch

30 AMP NEMA 1 Enclosed Toggle Switch

Item #: WBB864051

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 5

Price: $101.95

Save $5.10 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Toggle Switch 30 AMP 600V 3 Phase

Toggle Switch 30 AMP 600V 3 Phase

IDEM 230001 ES-P E-Stop Switch Knockout, 1/2NPT, 2NC 1NO, M20, Die Cast

IDEM 230001 ES-P E-Stop Switch Knockout, 1/2NPT, 2NC 1NO, M20, Die Cast

Short Toggle Switch 30 AMP 600V

Short Toggle Switch 30 AMP 600V

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Global Approved 162709 Horizontal Wall Mount Acrylic Sign Holder, 17" x 11", Acrylic

Global Approved 162709 Horizontal Wall Mount Acrylic Sign Holder, 17" x 11", Acrylic

Advance Controls 134801 CK28.311 Contactor, 3-Pole, 120V

Advance Controls 134801 CK28.311 Contactor, 3-Pole, 120V

Our NEMA1 Toggle Switch is all aluminum cover and base. Base is pre-drilled for rear or surface mounting.

Weights & Dimensions

  • Width 3.2 in
  • Length 4.72 in
  • Depth 2.41 in
  • Weight 1.15 lbs

Product Details

  • 600V AC 20
  • 120V AC 3
  • 480V AC 15
  • Terminal Torque 20 INCH POUNDS
  • Flammability Rating UL94HB/VO
  • Amperage 30 A
  • Box Enclosure NEMA 1 ALUMINUM
  • Short Circuit Withstand Rating As Motor Controller 125A MAX RK5 FUSES
  • Product Type Motor Control SW T
  • Poles 3
  • Short Circuit Withstand Rating as Motor Disconnect 60A MAX J FUSES 10,000 RMS
  • Electrical Life 6,000 CYCLES AT RATED SWITCH LOAD
  • Terminal Accomodations AWG MIN. #14 - AWG MAX. #10
  • Dielectric Voltage 2,200V AC MINIMUM FOR 1 MINUTE V
  • Phase 3
  • 240V AC 7.5
  • Max Voltage 600V AC RMS V
  • Brand Bryant
  • Operating Temperature Range MAX. CONTINUOUS 60 DEG. C., MIN. CONTINUOUS W/OUT IMPACT -40 DEG C. °C

Compliance & Certifications

  • UL Certification UL 508 Industrial Control Equipment File # E70402
  • CSA Listing CSA-C22.2 No. 14 Industrial Control Equipment File # LR-46186
