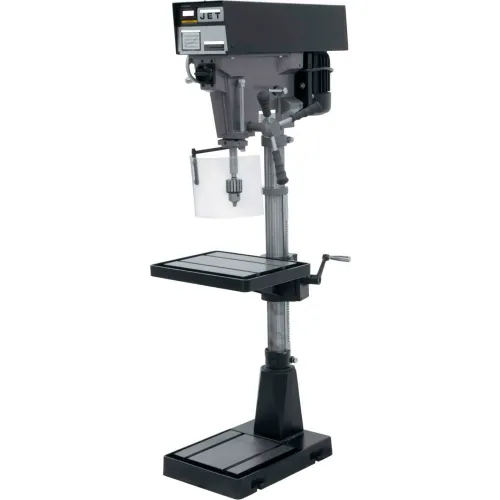

Jet 354550 J-A5816 15 Variable Speed Floor Model Drill Press, 115/230V, 1-Phase

These JET Drill Presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.

Features:
  • Speeds from 400 to 5000 RPM
  • Handwheel adjustment sets the speeds
  • Large 2-1/4 quill allows greater accuracy
  • 3 Column diameter for maximum head support
  • Full bearing support on quill for maximum spindle stiffness
  • 6 stroke for deep hole application
  • Accurate depth stop for precise hole depths
  • 1/2 drill chuck & arbor
  • Safety collar


Weights & Dimensions

  • Quill Travel 6 in
  • Spindle Travel 6 in
  • Spindle Distance To Table (Max) 25-3/4 in
  • Quill Diameter 2-1/4 in
  • Base Slots Number & Size 2 X 1/2 in
  • Table Size (L x W) 15 X 18 in
  • Column Diameter 3 in
  • T-Slots Number And Size 2 & 1/2 in
  • Max Spindle Distance to Table 41 in
  • Drills to Center of Circle 15 in
  • Base Work Table 12-1/8 X 11-13/16 in
  • T-Slots Centers 5-5/16 in
  • Spindle Distance To Base 44-1/2 in
  • Size 15 in

Product Details

  • Motor Voltage 115/230 V
  • Spindle Taper 2 MT
  • Drilling Capacity Mild Steel 1/2
  • Range of Spindle Speeds 400 - 5,000 rpm
  • Motor Horsepower 1 HP
  • Style Floor
  • Work Table Weight Capacity 90 lbs
  • Drilling Capacity Cast Iron 5/8
  • Number of Spindle Speeds Variable
  • Motor 1 HP, 115/230V, 1 Ph, Prewired 115V
  • Prewired 115V
  • Phase 1
  • Quill Feed Manual
  • Brand JET
  • Manufacturers Part Number 354550

Warranty

  • Warranty 2-Year Warranty
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.

Replacement Parts
JET® A5816 Handle Table Raiser, 5507520

$42.95

JET® A5816 Rack, 5507521

$127.95

JET® A5816 Hi-Lo Spd Directn Plte, 5513378

$6.20

JET® 15 Vs Drill Press Screw, 5513511

$5.60

JET® 15 Vs Dp Magnetic Pickup, 5513515

$98.95

JET® A5816 Shcs, 5507502

$5.60

JET® A5816 Return Spring Assembly, 5507503

$39.95

JET® A5816 Nylon Nut, 5507504

$5.60

JET® A5816 Return Spring Bracket, 5507505

$44.95

JET® A5816 Switch Mounting Plate, 5507506

$78.95

JET® A5816 Worm Table Raiser, 5507513

$54.95

JET® A5816 Gear Table Raiser, 5507514

$56.95

JET® A5816 Cring Table Raiser, 5507516

$5.60

JET® A5816 Shss 5/16-18X3/8, 5507518

$5.60

JET® A5816 Shaft Table Raiser, 5507515

$11.00

JET® V-Belt Vs 15 / 1422 466, 9077101

$192.95

JET® Retainer 15 & 20 D.P., 9053661

$4.60

JET® Shss 5/16-18X3/8 Cup Pt, 9054511

$4.39

JET® Shss 5/16-18 X 5/16 1/2 Dog, 9127731

$4.60

JET® Shss 3/8-16X1/4 Nyl 15 Dp, 9127951

$4.60

JET® Shss 1/4-20 X 1/2, 9054621

$4.60

JET® Nut Hex Jam 1/4-20, 9056981

$4.39

JET® Flange Whiz Locknut 5/16-18, 9057111

$4.39

JET® 1/4-20 X 1 Whiz Lock Screw, 9135311

$4.39

JET® Ball Knob 15 Dp, 9070291

$8.30

JET® Bearing 6205 2Z Gjn, 9100321

$65.95

JET® Upper Pulley, A5816-51B

$331.95

JET® Quill, 5041010A

JET® Quill, 5041010A

Item #: B3060500

Not Yet Rated

Free Shipping

$275.95

JET® Rod Graduated, 5053100A

$68.95

JET® Spindle (Text) , 5507496A

$319.95

JET® Quill Assembly, 5507527A

$429.95

JET® Lower Pulley, A5816-51A

$319.95

JET® Ball Bearing, BB-6009Z

$82.95

JET® Ball Bearing, BB-6009ZZ

$120.95

JET® A5816 Rack Ring (Black) , J-5507522

$97.95

JET® Spd Change Lvr Vs Only 15, 5041040

$99.95

JET® Spd Change Shaft Vs 15, 5041071

$42.95

JET® Bearing Spacer, 5041201

$43.95

JET® Spd Change Nut, 5041761

$35.95

JET® Spoke Feed 15 Dp, 5053000

$18.25

JET® Hd Lock Vs/6S 15Dp Pp, 5024541

$43.95

JET® Mtr Plt Bar 15 & 20 Dp, 5032781

$32.95

JET® (Mdl 72A/74A) Wavy Washer, 6863005

$14.50

JET® 7/16-14 Hex Nut Plain, 6517001

$4.39

JET® Ball Bearing, BB-6204ZZ

$19.25
