Features:

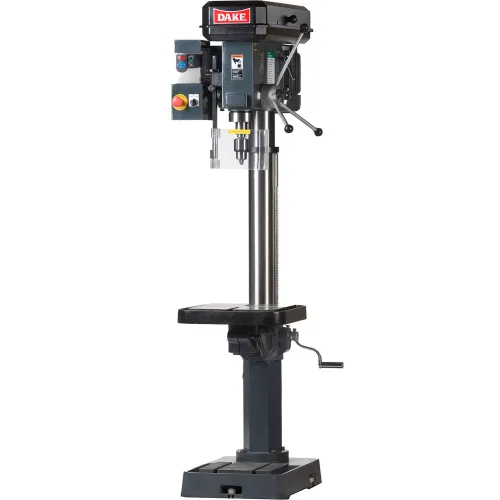

- Heavy-duty variable speed / reversible floor model drill press.
- Depth is adjustable and can preset for repetitious drilling operation to predetermined depth.
- Conveniently placed controls. E-Stop button, low voltage protection, and belt cover interlock switch for safety.
- Adjustable Plexiglas chip / chuck guard standard.
- Standard 110V for economical operation.
- Frequency drive with reverse.
- Bit changes quickly.
- Precision ground table and base with Tee slots for clamping and fixturing.
- Large table that can be swiveled or rotated on the column for a variety of drilling operations. Height adjustable table with locking mechanism.
- Quick release belt tensioning for fast speed changes. Three-pulley system and variator for high torque and multiple speed ranges. Pulleys are drilled for best balance.
- Three spoke handle with spring return for ergonomic operation.
- Compact size to minimize floor space.
- Large column diameter for added rigidity.
- MT (Morse Taper) 4 accepts most standard size bits or adapters.
- Drill press comes complete with chuck, keys, wedges, owner's manual and a 1-year Dake warranty; all you do is just add power.
- Drill Capacity: 1-1/4"
- Spindle Taper: MT4
- Working Diameter: 18"
- Number of Speeds: Variable Speed
- Spindle Speed Range: 46 - 3,473 RPM
- Spindle Travel: 5-1/4"
- Column Diameter: 4"
- Table (D x W): 15-3/4" x 15-3/4"
- Base (D x W): 23-5/8" x 15"
- Spindle to Table: 26-1/4" Max
- Spindle to Base: 50"
- Overall Height: 71"
- Weight: 483 Lbs.
