36" Turning Bar 480009 for 8000, 15,000, & 30,000 Lb. Wesco® HeviMover™

GKS Perfekt® MACHINERY TRANSPORT ROLLER DOLLY Roller Dollies Safely Move Loads up to 13,200 Lbs.! Transport dollies are used for moving and positioning heavy, bulky loads over smooth or uneven surfaces. Robust design ensures excellent load stability and rigidity. Heavy-duty welded steel frame is designed with enclosed rollers to prevent bending of axles. The patented nylon roller material will not mark epoxy, painted or concrete industrial floors, or even sensitive tiled or wood floors. Low-profile loading height allows for maximum versatility. Anti-slip pads on contact points provide ...

The Model 3310 Dolly is a cast iron base 12" end to end with a 2" deep well, measuring 6-3/4" at the top and 5-1/4" at the bottom. Clearance is 1-1/4" from the floor. Overall height is 4-1/4". The 3" diameter wheels are chosen based on the weight carried and the environmental needs. The Semi-Steel wheels are chosen when weight bearing and ease of rolling are the primary considerations and floor protection is secondary. Excellent in high heat applications. Made from compressed sintered iron with impregnated oil. This wheel provides a weight capacity of 750 lbs. per dolly. Each dolly weighs ...

The Model 5500 Extreme Weight Dolly is a 3/8" thick steel plate measuring 23" end to end with a 6" diameter straight sided well with a yellow powder coat finish and drain holes. Clearance is 2" from the floor. Overall height is 7-7/8". Super duty kingpin-less casters are chosen for their durability especially in abusive or shock load applications. 6" diameter by 3" width wheels made of quiet riding and durable polyurethane thread with a cast iron center and tapered bearings. The slightly crowned tread is 95 Shore A hardness polyurethane. The polyurethane is non-marking, non-staining and ...

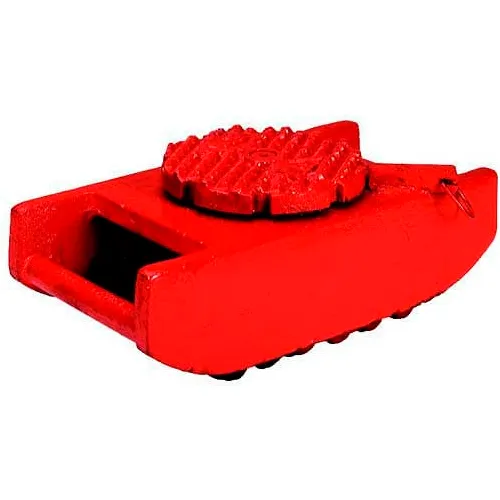

Machinery Moving Dollies provide a Quick, Easy and Safe Way to Move Heavy Loads! Equipment moving dolly is made with precision ground and hardened steel rollers that form an endless chain which revolves around a central load-bearing plate in the frame. Weight of the load is transferred directly from the load-bearing plate to the rollers, eliminating axle friction and requiring less power to start and move the load. HeviMover™ rolls easily over cracks and pitted floor areas to reduce possible damage to goods. Shipped ready to use. Swivel Top Plate rotates 360° to allow turning ...

HIGH CAPACITY STEERABLE MACHINERY MOVING SKATE KIT Machinery Skate Kits move the heaviest Equipment with ease. Professional grade three-point moving system is designed for moving heavy loads over smooth, painted, finished or sealed floors. Easy to assemble without tools, each kit includes one front steering unit and two rear units. Front mover has a swivel top and a steer handle with an integral towing eye. Rear movers are adjustable in width for larger loads. Additional movers can be added to further stabilize larger, bulkier cargo. Anti-slip pads on contact points provide high load ...
