- Self-primes to 20 Feet with built-in buna check valve
- SiC/Car seal w/ Viton® elastomers
- Cast iron replaceable volute/wearplate and impeller
- Stainless steel shaft sleeve
- Steel suction strainer included
- Maximum temperature: 180 F
- Maximum working pressure: 75 PSI
- Base rails and wheel kit included

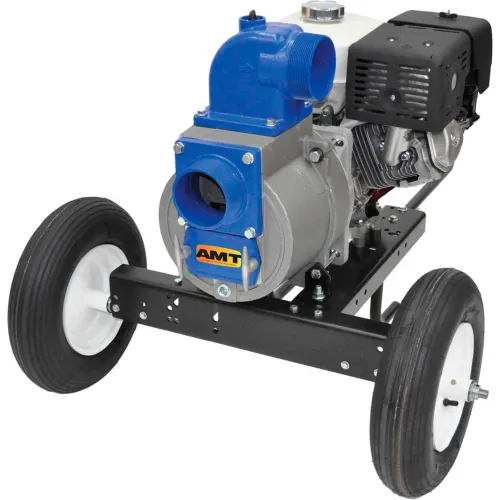

AMT 3994-96 4" NPT Premium Trash Pump, Honda OHV GX390 Engine, 75psi, Viton/SIC Seal, 4" In/Out
Write a Review
|
Questions & Answers (0)
Product Description
AMT engine driven trash pumps are designed for applications which require high flow efficiency and solids handling capability. These pumps are constructed of heavy duty sand cast aluminum components featuring removable/replaceable cast iron volutes, impellers and wear plates. Simple clean-out design permits easy removal of trash and debris without disconnecting hoses. Cast iron discharge port rotates in 90 Degree Increments.
PRICE
$7,699.00
1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 45-7/16 in |
| Width | 38-1/2 in |
| Height | 31-5/8 in |
| Weight | 300 lbs |
| Suction Head Maximum | 20 ft |
| Max Head | 105 ft |
| Inlet Connection | 4 in |
| Max Diameter Solids | 2 in |
| Discharge Connection Size | 4 in |
Product Details
| Max Fluid Temperature | 180 °F |
| Max Run Time | 2.5 Hours min |
| Impeller Material | Cast Iron |
| Material | Cast Aluminum |
| Discharge Connection Type | MNPT |
| Manufacturers Part Number | 3994-96 |
| Brand | AMT |
| Type | Trash Pump |
| Horsepower | 11 - 50 HP |
| Fuel Tank Capacity | 1.4 gal |
| Gallons per Hour | 32400 gal/hr |
| Includes | Steel Suction Strainer, Steel Roll Frame, Wheel Kit & Base Rail |
| Engine | Honda GX390 OHV |
| Fuel Type | Gasoline |
| Inlet Connection Type | NPT |
| Housing Material | Cast Aluminum |
| Starter System | Electric & Recoil |
| Shaft Seal Material | Silicone carbide |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | CARB, EPA |
