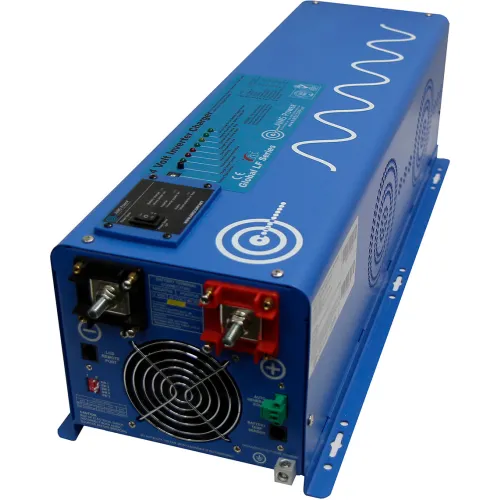

Combine this solar inverter charger with a deep-cycle battery bank for off-grid, mobile and emergency backup power. The most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. When using the terminal block, this inverter peaks at 12000 watts with the power to run many tools and appliances with a startup surges, such as a refrigerators, freezers, microwaves and blow dryers.
Output Specifications:
- Continuous output power: 4000 Watt
- Surge rating: 12,000 Watt (20 seconds)
- Output: 120/240 VAC
- Output waveform: pure sine/same as input (bypass mode)
- Nominal efficiency: >88% (peak)
- Line mode efficiency: >95%
- Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical transfer time: 10ms (Max)
- THD: < 10% DC
- Nominal input voltage: 12.0 VDC
- Minimum start voltage: 10.0 VDC
- Low battery alarm: 10.5 VDC-11.0 VDC
- Low battery trip: 10.0 VDc-10.5 VDC
- High voltage alarm: 16.0 VDC
- Low battery voltage restart: 15.5 VDC
- Idle consumption: 50 watts
- Power saver mode idle consumption: 21 watts
- Output voltage: depends on battery type
- Charger rate: 115A
- Over charge protection shutdown: 15.7 V
- Selectable charge setting based on battery type
- Adjustable charge current off- 20%-100%
- Four stage smart charger
- 40 amp automatic transfer switch10 ms (max)
- Unit size: L x W x H: 31.5" x 8.75" x 7.25"
- Shipping size: L x W x H: 35.5" x 14.50" x 13.50"
- Unit weight: 75 lbs
- Shipping weight: 87 lbs.
Input Specifications:
Charger Specifications:
Transfer Switch Specifications
DImensions:
