TYPHOON SLANT WALL EXHAUST FANS
50" Belt Drive Fan with No Cone
Eliminates heat build up in barns, greenhouses and industrial buildings. Heavy-duty 18 gauge galvanized steel housing and venturi support 12 gauge motor mount. Includes aluminum shutters on intake with tie bars and shutter clips for secure closure. Heavy-duty galvanized X-frame motor mount provides rigidity for increased life and quieter operation. Balanced galvanized steel fan blades offer smooth operation. Enclosed motor has sealed ball bearings and automatic thermal overload protection for long life. Features a 12 gauge, 1" x 2" mesh guard. Guard is galvanized after welding. Includes poly isolation guard clips that help reduce vibration and noise. Heavy spring belt tensioner ensures long motor life. Motor is UL/ULC recognized. Easy assembly. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.

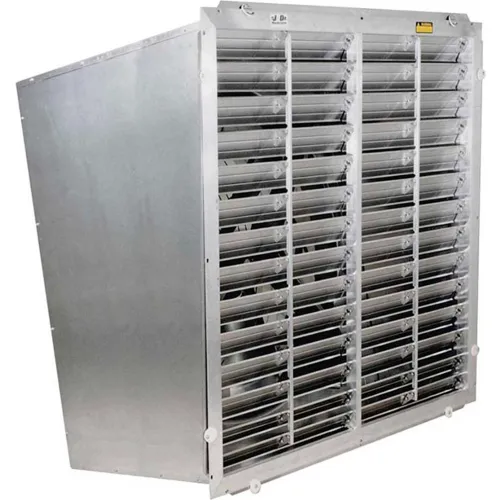

J&D 50" Typhoon Exhaust Slant Wall Belt Drive No Cone
|
Questions & Answers (0)
Product Description
PRICE
$1,649.00
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 57 in |
| Width | 28 in |
| Height | 57 in |
| Weight | 275 lbs |
| Fan Diameter | 50 in |
Product Details
| Assembly Required | No |
| CFM | 21257 CFM |
| Horsepower | 1 HP |
| Color | Galvanized |
| Amperage | 9.0 / 4.5 A |
| Drive Type | Belt |
| Hertz | 60 Hz |
| Number of Blades | 3 |
| Motor Type | Totally Enclosed |
| Voltage | 115 / 230 V |
| CFM High | 21257 CFM |
| Phase | 1 |
| Description | Typhoon Slantwall Exhaust Fan |
| Indoor/Outdoor | Indoor |
| Brand | J&D Manufacturing |
Warranty
| Warranty | 2 yr |
Compliance & Certifications
| Certifications | UL, ULC |
