AMT

Model # :WBB2281394

MPN #: 5586-H6

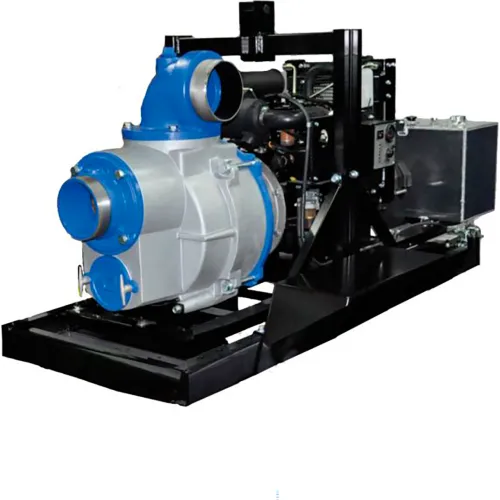

AMT 5586-H6 6" Engine Driven Trash Pump-Skid, Honda V-Twin OHV, 1000gpm, Viton/SIC Seal, 6" In/Out

Product Description
This engine driven trash pump is designed for applications requiring high volume flow and solid/debris handling capabilities. Constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from trailer. Digital tachometer/hourmeter installed.
  • Cast aluminum with cast iron and stainless steel components for long lasting durability
  • SiC/Cer seal w/Viton® elastomers
  • Buna-N o-rings and check valve
  • Built-in check valve for fast priming to 20 feet
  • Maximum solids handling 3"
  • 6" NPT port size
  • Delivers up to 1,000 GPM
  • Digital tachometer/hourmeter installed
  • Maximum temperature 180 f
  • 12 volt DC electric start (battery not included)
  • Easy clean-out and service features with the unique AMT patented slide mechanism
  • Steel suction strainer and pipe nipple included
  • Seal wash feature for extended seal life


PRICE
$26,839.00

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length71 in
Width33 in
Height40 in
Weight725 lbs
Suction Head Maximum20 ft
Max Head96 ft
Inlet Connection6 in
Max Diameter Solids3 in
Discharge Connection Size6 in

Product Details

Max Fluid Temperature180 °F
Max Run Time9 Hours min
Impeller MaterialStainless Steel
MaterialCast Aluminum
Discharge Connection TypeMNPT
Manufacturers Part Number5586-H6
BrandAMT
TypeTrash Pump
Horsepower11 - 50 HP
Fuel Tank Capacity20 gal
Gallons per Hour60000 gal/hr
IncludesStrainer
EngineHonda V-Twin OHV 2 Cyl. Air Cooled
Fuel TypeGasoline
Inlet Connection TypeNPT
Housing MaterialCast Aluminum
Starter SystemElectric & Recoil
Shaft Seal MaterialSilicone carbide

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsCARB, EPA
