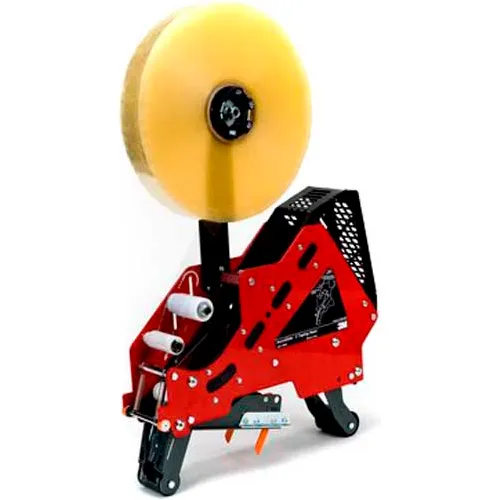

3M™ AccuGlide™ 3" Upper Taping Head, Red

Designed to be used in the 800asb Case Sealer. The taping head applies a C clip of Scotch™ brand pressure-sensitive film box sealing tape to the bottom center seam of regular slotted containers. The design of this taping head allows it to be mounted in the upper or lower taping locations. The compact size and simplicity of the taping head also makes it suitable for mounting into other box conveying systems to tape cartons. This includes replacement of other types of taping, gluing or stapling heads in existing case sealing machines.Heads available to apply 36mm to 48mm tape widths ...

The HST Upper Taping Head applies 48 mm wide C-clips of tape at case speeds of up to 150 ft./min. Unique precision shaft and ball bushing slide ensure precise application. Heads can be mounted for upper and lower or right and left side applications. Cases are securely and precisely sealed. Can replace other types of taping or gluing heads in existing case sealers.

33M™ AccuGlide™ 2+ Upper Taping Head, 3" Features stainless steel construction for corrosive plant environments. The low profile side plate and open tape path allow fast and easy threading, while brake drum maintains proper tape tension and prevents overcoasting. Low-impact curvilinear motion exerts minimum force on case and maximizes system life. Upper taping head applies 48mm and 72mm (2" and 3") tape widths up to 81 ft/min case speed. Flexible buffing roller and brush compensate for case variation.

3M™ AccuGlide™ V HSP Taping Head is designed for high-speed tape application that uses low-impact motion to seal cases with minimum force. It can apply Scotch® Box Sealing Tape at up to 150 fpm while maintaining quality tape application. This taping head is designed for sealing under-filled boxes without compromising tape adhesion. Low-Impact and Lightweight Taping Head With low-impact motion, the high-speed 3M™ AccuGlide™ V HSP Taping Head applies Scotch® Box Sealing Tape at up to 150 feet per minute yet exerts minimum force on cases to protect both cartons and ...

3M™ AccuGlide™ NPH+ Upper/Lower Taping Head features a narrow profile and is designed to fit virtually any case sealing system on the market. Low-impact motion and taping speeds of up to 100 fpm help streamline operations, maximize productivity and improve quality, no matter what brand of case sealer you own. Features: Fully open profile side plate, open tape path and easy-to-follow labeling allow fast, easy threading Standard with stainless steel side plates for long term durability
