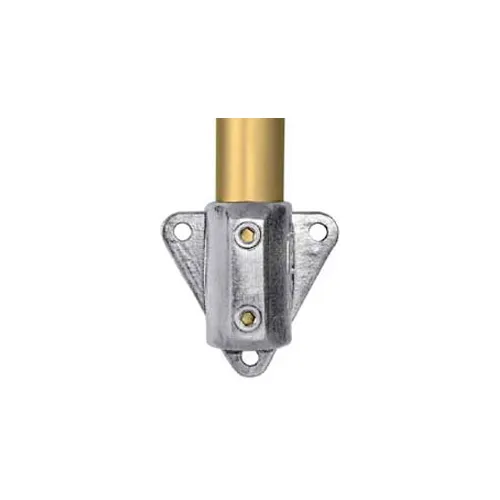

Kee Safety - L68-6 - Aluminum Wall Flange, 1" Dia.

Kee Klamp® Fittings Railing Support This fitting, with holes provided for countersunk flat head screw fixings only, is designed to carry handrails along walls or to fix structures back to walls. The pipe passes through the fitting and cannot be joined within the fitting. Type 70 is also used to attach toeboards to the bases of guardrail uprights. Warning: These fittings are not to be used as base flanges for full height guardrails. 5/16" diameter fixing holes.

Kee Klamp® Fittings Parapet Flange A component designed to retrofit roof parapets that are an unsafe height. Rail anchor is angled 25 degrees from the vertical so that the building's visage is unaffected by the implemented railing. Two holes are located in the top mounting bracket for mounting directly into the parapet. The two set screws in the vertical socket give greater side-load stability to the angled upright.

KEE KLAMP® FITTINGS MEDIUM FLANGE This flange, with holes provided for countersunk head fixing screws only, is used on structures where the fixing required is positional only. Frequently used as a wall-fixing bracket. 1/4" diameter fixing holes. PA Warning: It is not recommended for use as a base flange to support guardrailing or balustrading.

Kee Klamp® Fittings Railing Flange with Toe Board Adapter The Type L69 fitting has been designed for guardrailing and balustrading applications and provides the added benefit of attaching a kick plate to the base. The base plate holes are of sufficient diameter to allow for attachment with either a mechanical or chemical anchor, the side plates have slotted holes to allow for a degree of sideways movement for ease of installation. 7/16" diameter fixing holes.

Kee Klamp® Fittings Rail Support This fitting, with holes provided for countersunk flat head screw fixings only, is designed to carry handrails along walls or to fix structures back to walls. The pipe passes through the fitting and cannot be joined within the fitting. Type 70 is also used to attach toeboards to the base of guardrail uprights. 5/16" diameter fixing holes. PA Warning: These fittings are not to be used as base flanges for full height guardrails.
