Weights & Dimensions
| Length | 24.78 in |
| Width | 18 in |
| Height | 18 in |
| Weight | 290 lbs |
| Shaft Length | 1.375 in |
| Shaft Diameter | 1.625 in |
| Frame Size | 254T |
| Drive End Bearing Size | 6312 |
| Length Less Shaft | 28.5 in |
Product Details
| Number of Speeds | 2S-1W-VT |
| Drive End Flange | Standard |
| Motor RPM 60 Hertz | 1770/885 rpm |
| Mounting Location | Rigid |
| Phase | 3 |

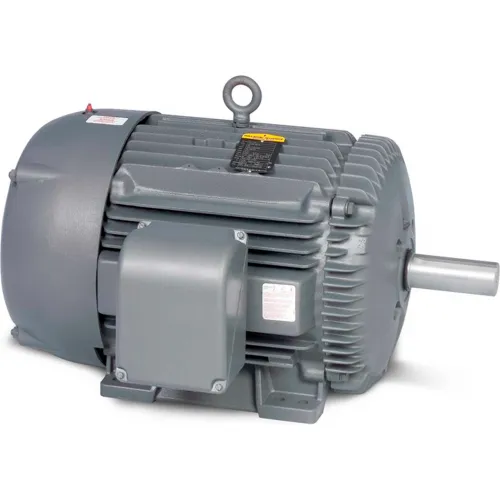

| Manufacturers Part Number | CTM1761T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Brand | Baldor-Reliance |
| Bearing Type | Ball |
| Insulation Class | F |
| Horsepower | 15 HP |
| Frame | 254T |
| Hertz | 60 Hz |
| Rotation | CCW/CW ° |
| Thermal Protection | None |
| Enclosure Type | Totally Enclosed |
| Voltage | 460 V |
| Full Load Efficiency | 90.2 |
| Full Load Amps | 19.2/7.50 FLA |
| Duty | Continuous |
| Poles | 4; 8 |
| Rated RPM | 1770/885 |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| Certifications | CSA; UR |
