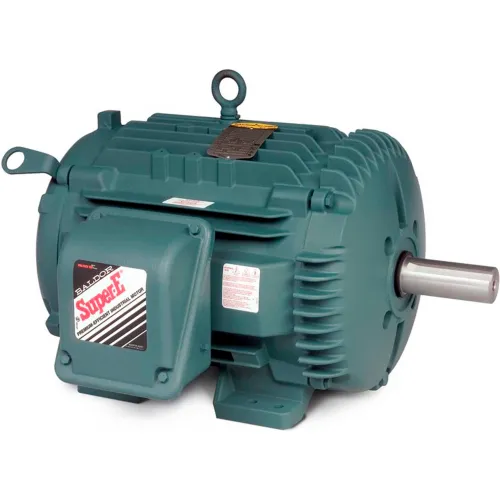

Baldor-Reliance Motor, 7.5HP,1770RPM,3PH,60HZ,213T,0735M,TEAO,F
Features:
For use in the airstream on cooling towers.
Features:
- 1.15 service factor
- Corrosion resistant expoxy finish
- Double sealed bearings
- Inpro/Seal® labyrinth
- Class F insulation
- Moisture resistant copper windings
- Double dipped and baked
- Stainless steel nameplates
For use in the airstream on cooling towers.
Weights & Dimensions
- Width 18 in
- Length 19.54 in
- Height 18 in
- Drive End Bearing Size 6307
- Shaft Diameter 1.375 in
- Frame Size 213T
- Opposite End Bearing Size 6206
- Length Less Shaft 28.5 in
- Weight 170 lbs
Product Details
- Service Factor 1.15
- Enclosure Type Totally Enclosed
- Horsepower 7 1/2 HP
- Is_Motor Yes
- Duty CONT
- Phase 3
- Enclosure TEAO
- Full Load Efficiency 91.7
- Brand Baldor-Reliance
- Bearing Type Sealed
- Full Load Amps 19.8-19/9.5 FLA
- Design Code A
- Motor RPM 60 Hertz 1770 rpm
- Thermal Protection None
- Hertz 60 Hz
- Manufacturers Part Number ECTM3770T
- Mounting Location Rigid
- Number of Speeds 1
- Rotation CCW/CW °
- Poles 4
- Ambient Temperature 40 °C
- Drive End Flange Standard
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 208-230/460 V
- Frame 213T
- Rated RPM 1770
Compliance & Certifications
- Certifications CSA; CSA EEV; UR
