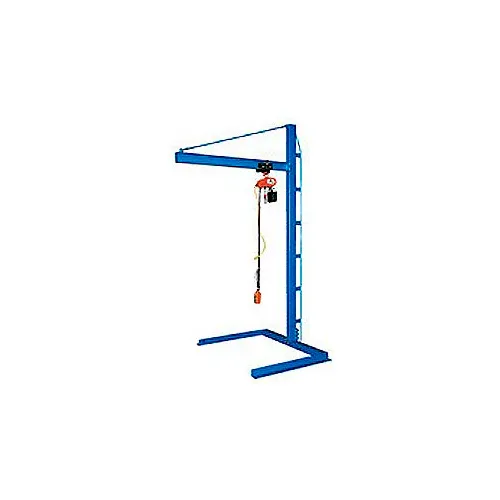

CANTILEVER FLOOR MOUNTED JIB CRANE Uniquefreestanding jib floor crane is ideal for work cells and assembly areas as the 40" outriggers can be mounted underneath a workbench, allowing product to be lifted directly from a cart. Inside straddle width is 48". I-beam offers 54" usable length and has safety stop at end of boom. Four 3/4" dia. holes in base allow lagging to floor. Constructed of high-strength steel with scratch resistant blue enamel finish. Complies with CMAA and ANSI specifications. Assembles easily. *Hoist and trolley are sold seperately.
Share
Spec Sheet
Cantilever Floor Mounted Jib Crane CJIB-10 1000 Lb. Capacity
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,679.00
1
1
Bulk Pricing
Quantity
Pricing
Buy 1 unit
1679.00
Buy 2 units
1519.00Save $160.00 (10%)
Buy 3+ units
1469.00Save $210.00 (13%)
Ships in 40 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 65-1/4 in |
| Width | 54 in |
| Height | 103-3/4 in |
| Weight Capacity | 1000 lbs |
| Under Beam Height | 78-1/2 in |
| Flange Width | 4 in |
| Boom Length | 54 in |
| I-Beam Height | 6 in |
Product Details
| Assembly Required | Yes |
| Color | Blue |
| Material | Steel |
| Manufacturers Part Number | CJIB-10 |
| Brand | Vestil |
