✓ Easy-adjusting side belts and top for uniform cases
✓ Two 2" tape heads with easy tape threading
✓ Quick loading and interchangeable tape heads
✓ Two side drive belts provide positive case feed
✓ Includes chrome steel infeed and exit conveyors
✓ Adjustable legs from 22"–32" with locking casters

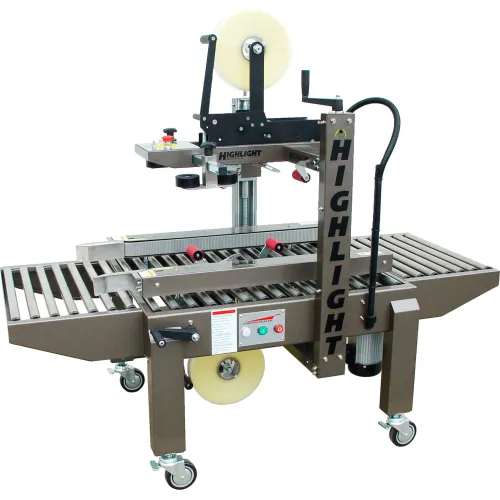

The Highlight Magnum™ 2300 SD-U is a side belt drive case sealer. Side drives provide the best drive and support for cartons that are longer in length and shorter in height because the side drive belts hold the carton more securely while applying the tape. The 2300 will provide accurate, consistent tape application to uniform cases. The side belts drive and tape head can quickly be adjusted for different box sizes with the turn of a handle. Highlight's 200 series tape head accepts any 2-inch case tape and provides optimum case sealing to the top and bottom of the case. Operates at up to 30 cases per minute.
Highlight Industries Magnum™ Uniform Case Sealer, Side Belt Drive, 2" Tape Head
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$6,499.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 375 lbs |
| Min Box Weight | 1 lbs |
| Machine Length | 68" with Conveyors, 36" without Conveyors in |
| Max Box Length | Unlimited |
| Machine Weight | 375 lbs |
| Machine Height | 23 - 32 in |
| Tape Width | 2 in |
| Machine Width | 34 in |
| Min Box Width | 4 in |
| Min Box Height | 5 in |
| Tape Roll Diameter | Inside: 3, Outside: 16 in |
| Max Box Height | 20 in |
| Max Box Width | 20 in |
| Min Box Length | 5 in |
| Max Box Weight | 75 lbs |
Product Details
| Box Belt Speed | 75 ft. Per Minute |
| Operating Speed | 30 Boxes/Minute |
| Manufacturers Part Number | 760067 |
| Brand | Highlight Industries |
| Type | Side Belt Drive |
| Color | Gray |
| Amperage | 10 A |
| Series | Magnum™ 2300 SD-U |
| Hertz | 60 Hz |
| Voltage | 120 V |
| Description | Uniform Case Sealer |
