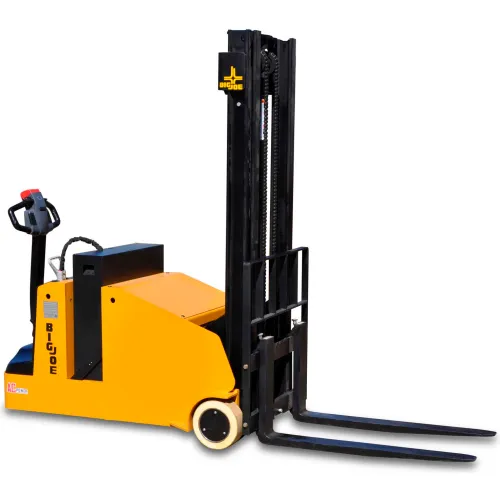

Big Joe® CB22 Fully Powered Counterbalanced Lift Truck 2200 Lb. 157" Lift
Write a Review
|
Questions & Answers (0)
Product Description
Operator can easily approach mezzanines and racks with lower braces. Perfect for loading and unloading shipping containers or trucks since there are no stabilization legs to get in the way. Tight 56" turning radius eases maneuverability in confined aisles. 2.2KW lift motor raises loads 25 ft./min. and travels via 0.9KW AC drive motor at 3.1 mph loaded and 3.4 mph unloaded. 42"L x 4"W x 1-½" forks offer 24" load center and adjust from 8" to 28" O.D. Includes (4) 6V 224Ah maintenance-free batteries, battery discharge gauge and integral 25 amp 110V charger. Ergonomic handle controls speed and lift with left or right hand, and offers auto-reverse safety belly button switch. 2 Year Limited Warranty.
Dock required for Delivery.
Dock required for Delivery.
PRICE
$20,199.00
1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 106 in |
| Width | 32 in |
| Height | 71 in |
| Lowered Height | 2 in |
| Raised Height | 157 in |
| Weight Capacity | 2200 lbs |
| Weight | 4850 lbs |
| Fork Length | 42 in |
| Fork Width | 4 in |
| Wheel Diameter | 9 Front, 8 Rear in |
| Overall Fork Width | 8 to 28 (adjustable) in |
| Travel Speed | 3.1 Loaded; 3.4 Unloaded mph |
| Lift Speed | 25 ft/min |
| Load Center | 24 in |
Product Details
| Assembly Required | No |
| Charger | 25 amp / 110V |
| Material | Steel |
| Lift Motor | 2.2 KW |
| Manufacturers Part Number | CB-22-157-BB224AG |
| Brand | Big Joe |
| Power | Battery Operated |
| Type | Counter Balanced |
| Color | Yellow |
| Wheel Type | Polyurethane |
| Duty Cycle per Charge | 4 - 6 Hours Intermittent Use (Approx. 75 Pallet Moves) |
| Batteries | (4) 6V / 224AH |
| Drive Motor | 0.9 KW kW |
Warranty
| Warranty | 2 yr |
