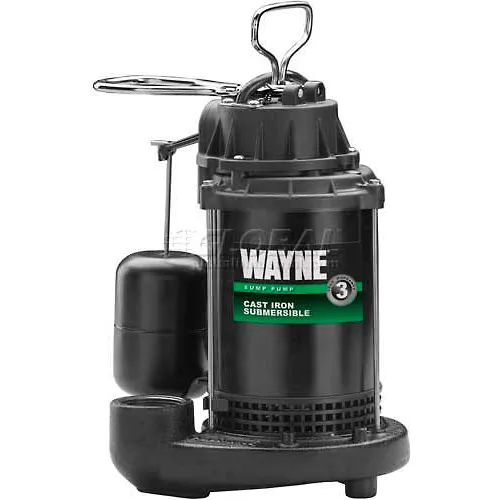

Wayne® CDU800 1/2 HP Cast Iron Sump Pump
Write a Review
|
Questions & Answers (0)
Product Description
WAYNE's CDU800, 1/2 HP Epoxy-Coated Steel and Cast Iron Primary Sump Pump, is completely sealed for long-lasting submersible use. This primary sump pump performs up to 4200 GPH at 0', and is designed with a vertical float switch for automatic operation. The top suction design minimizes clogging and float guard protects the switch from hang-ups. The pump can be installed in a 11 in. or larger sump pit and installs easily. 3 Year Limited Warranty.
PRICE
$399.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 10 in |
| Width | 10 in |
| Height | 14 in |
| Weight | 18.5 lbs |
| Cord Length | 8 ft |
| Switch Off Height | 4 in |
| Switch On Height | 9 in |
| Max Head | 22 ft |
| Discharge Connection Size | 1-1/2 in |
| Min Sump Pit Diameter | 11 |
Product Details
| Max Fluid Temperature | 77 °F |
| Impeller Material | Thermoplastic |
| Discharge Connection Type | NPT |
| Manufacturers Part Number | 56270-WYN3 |
| Temperature of Liquid Pumped | 120 |
| Brand | Wayne |
| Type | Submersible Sump Pump |
| Horsepower | 1/2 HP |
| Color | Black |
| Amperage | 10 A |
| Switch Type | Vertical Float |
| Voltage | 120 V |
| Gallons per Hour | 4200 gal/hr |
| Housing Material | Cast Iron |
| Base Material | Cast Iron |
| Shaft Seal Material | Carbon/Ceramic |
Warranty
| Warranty | 3 |
Compliance & Certifications
| Certifications | UL Listed |
