Zoeller N163 Flow-mate for septic tank - low pressure pipe (LPP) and enhanced flow step systems. Effluent or dewatering submersible pump with 1 1/2" NPT discharge. Passes 3/4" spherical solids. The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non automatic pumps. Integral float operated mechanical switch, no external control required. durable cast iron constructed switch case, base, motor and pump housing - Corrosion-resistant, powder coated epoxy finish - No screens to clog - Neoprene square ring & gasket - Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly.

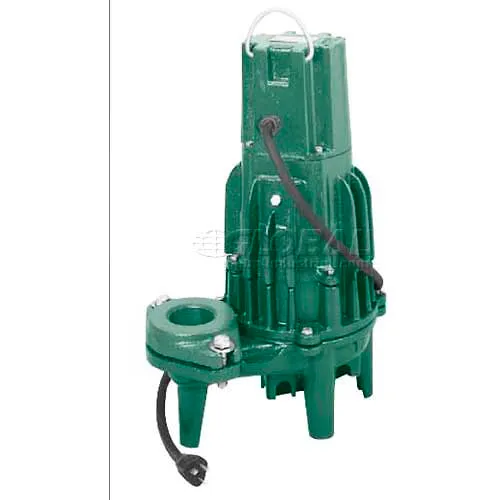

Zoeller Flow-Mate BN163 Sump Pump For Septic Tanks 163-0034, LPP, 20' Cord, 1/2 HP
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$2,675.00
1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 12-3/4 in |
| Width | 12-3/4 in |
| Height | 19-5/16 in |
| Weight | 81 lbs |
| Cord Length | 20 ft |
| Switch Off Height | 5 in |
| Switch On Height | 14-3/4 in |
| Max Head | 86.5 ft |
| Max Diameter Solids | 3/4 in |
| Discharge Connection Size | 1-1/2 in |
| Min Sump Pit Diameter | 18 |
Product Details
| Max Fluid Temperature | 140 °F |
| Impeller Material | Bronze |
| Phase | 1 |
| Discharge Connection Type | NPT |
| Manufacturers Part Number | 163-0034 |
| Submersible | Yes |
| Temperature of Liquid Pumped | 130 (E/D: 140) |
| Brand | Zoeller |
| Solids Handling | Yes |
| Type | Submersible Sump Pump |
| Horsepower | 1/2 HP |
| Color | Green |
| Amperage | 15 A |
| Series | 160 |
| Hertz | 60 Hz |
| Switch Type | Non-Automatic |
| Voltage | 115 V |
| Gallons per Hour | 3660 gal/hr |
| Housing Material | Cast Iron |
| Base Material | Cast Iron |
| Shaft Seal Material | Carbon/ceramic |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | CSA, SSMPA, UL |
