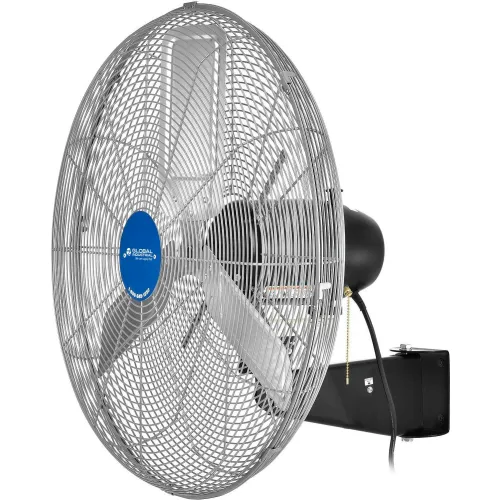

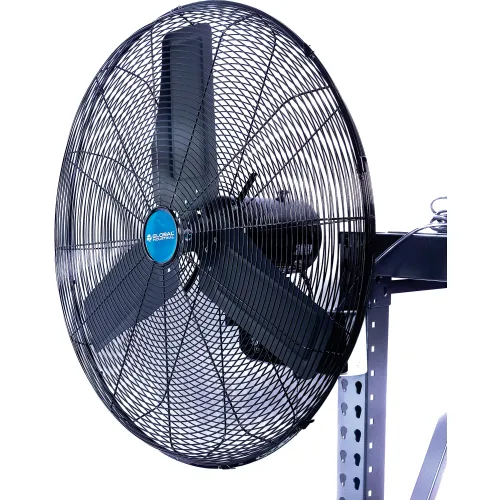

Global Industrial™ 30" Deluxe Industrial Wall Mounted Fan, Oscillating, 10000 CFM,1/2 HP

Global Industrial™ 30" Deluxe Industrial Wall Mounted Fan, Oscillating, 10000 CFM,1/2 HP

Item #: WB258322

(157)

Ships same day. ? Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial™ Fan Cover, Fits 24" and 30" Fan Heads

    $23.75

  • 30 Inch Fan Shroud MERV 6 Air Filter - Global Industrial™ - Pkg Qty 12

    $156.00

Price: $246.95

Save $12.35 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

DELUXE OSCILLATING WALL MOUNT FANS
30 Diameter Fan
Oscillating wall fans mount to the wall for safe, out-of-the-way operation. Wall mounted fans feature a highly efficient 3-Speed Open Air Over PSC-type ball bearing motor. The Push button Style oscillating feature allows for fixed and 80° oscillating fan operation. Industrial fans include a safety clutch oscillating mechanism that prevents jamming. Industrial wall fans include quiet metal fan blades that are balanced for optimum air distribution and enclosed in steel wire guards for safety. Pivot-action fan head allows tilt angle adjustments. Overall depth measures 20 from wall. Includes pull chain control and 12'L, 3-conductor power cord. This unique feature of 12'L power cord helps avoid the use of additional extension cords. UL, cUL Listedand conforms to UL507 Standard.120V. 1 Year Limited Warranty. Horsepower rating based upon maximum speed/load.

Not rated for outdoor use. Global Outdoor Rated Units are available in the link Here

  • BRAND Global Industrial
  • ASSEMBLY Unassembled
  • CFM HIGH 10,000
  • CFM MEDIUM 8,750
  • CFM LOW 7,300
  • WIDTH INCHES 33
  • HEIGHT INCHES 31-1/2
  • DEPTH INCHES 20
  • FAN DIAMETER INCHES 30
  • WEIGHT LBS 46
  • MANUFACTURER'S PART NUMBER 258322
  • COLOR FINISH Black / Silver
  • CONSTRUCTION Aluminum / Steel
  • HORSEPOWER 1/2
  • FAN TYPE Industrial
  • RPM HIGH 1,100
  • WATTS 290
  • PHASE 1
  • AMPS 2.5
  • HERTZ (HZ) 60
  • VOLTAGE 120
  • SPEEDS 3
  • MOTOR TYPE Open Air Over
  • MOTOR INSULATION Class E
  • DRIVE TYPE Direct Drive
  • DECIBELS (DBA) 75
  • OSCILLATING/NON-OSCILLATING Oscillating / Fixed
  • LIMITED WARRANTY YEARS 1
  • APPROVALS OR CERTIFICATIONS UL & cETL Listed, OSHA & UL507 Compliant
  • MOUNT TYPE Wall
  • POWER CORD TYPE SJT 3 Conductor
  • POWER CORD LENGTH FEET 12
  • BLADE TYPE Aluminum
  • BLADE QUANTITY 3
  • COLOR FINISH_GROUP1 Black
Customer Review

5.0

  • 5 Star

    116
  • 4 Star

    34
  • 3 Star

    5
  • 2 Star

    1
  • 1 Star

    1

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Helen G

    Date: February 17, 2021

    Great product
    Your review:
    Exactly what my husband wanted for his garage. He felt is was well made.
  • Reviewer: RODNEY

    Date: February 09, 2021

    powerful fan
    Your review:
    fan and motor are great... the mounting bracket is ok but seems a little whimpy... I'm sure it is fine.... i just changed out all the bolts for grade 8 because that's what my company uses....
  • Reviewer: JACK

    Date: January 13, 2021

    30in industrial fan
    Your review:
    Great product.
  • Reviewer: Christian

    Date: December 04, 2020

    Powerful cooling and pollution relief!!
    Your review:
    Perfect sized -massive air moving power @10,000 cfm. Mounted on 4x4 for outdoor deck and to blow neighbors disgusting wood smoke right back at 'em!!
  • Reviewer: DARNELL

    Date: November 14, 2020

    very good
    Your review:
    very good
  • Reviewer: PAUL

    Date: November 13, 2020

    Paul Bishop President Mid-Cities-Irrigation
    Your review:
    These are really nice fans.
  • Reviewer: Mark

    Date: October 27, 2020

    Awesome Fan!
    Your review:
    Awesome fan, works better than hoped.
  • Reviewer: ERIK

    Date: October 16, 2020

    Great FAN!
    Your review:
    GREAT FAN! Pushes the air around in our boat barn.
  • Reviewer: Matthew

    Date: October 12, 2020

    Good fan.
    Your review:
    Works are advertised. Reasonably quiet. Easy to assemble and install. Pull chain switch will probably be the first thing to break but I installed a wall switch for on/off. Pull chain only for speed now.
  • Reviewer: JAY

    Date: October 06, 2020

    Great Fan
    Your review:
    Very pleased with this purchase. This fan is extremely quiet. No good mounting instructions but husband is very handy so got it figured out.
Product Q & A

There are 6 questions and 6 answers for this product.

  • Does the mounting bracket allow the fan to be positioned so the airflow is parallel to the wall (or close to parallel)?

    Question Asked By: Victor, April 06, 2021

    Answer This Question

    Question Answered By:

    • Product Expert, April 16, 2021

      Hello, we apologize but this would not be possible. The wall mount and the fan itself is not designed to oscillate that far. Thank you for your question.

  • How long is the power cord?

    Question Asked By: Randi, June 10, 2020

    Answer This Question

    Question Answered By:

    • Product Expert, June 11, 2020

      Hello Randi, the power cord is 12 ft. long. Thank you for your question.

  • at what angle can the fan be mounted to ensure oscilating feature does not break. In other words how far can the fan be pointed down? or does it have to be vertcal, can they be pointed down 30 degrees and oscilating feature not break?

    Question Asked By: gabriel Flores, September 30, 2019

    Answer This Question

    Question Answered By:

    • Product Expert, October 01, 2019

      Hello Gabriel, it is recommended that the fan be mounted flush to a wall and not on an angle. The fan head pivots to allow positioning up and down that will not harm the oscillation feature. Thank you for your question.

  • Unfortunately after 3 1/2 years of great service the fan blade has come loose where it mounts to the shaft. Is there a replacement fan blade for this model?

    Question Asked By: Luis, May 04, 2017

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Luis, Unfortuately we don't carry replacement blades for this fan. The only replacement pieces we have are the motor, grille, oscillation arm and the wall mount. You can check that the Set Screw is tightened properly. I have included a link to the manual: http://www.globalindustrial.com/site/images/chain/607050_607051_258321_258322_Industrial-Wall-Fan_Manual.pdf Thank you for your interest in our product!

  • The pull chain came out of the housing in the motor. Is there a way to open the fan motor to reattach the chain?

    Question Asked By: Jay, June 21, 2016

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Jay, Unfortunately, we do not know a method of opening the fan motor and reattaching the chain.

  • Does the swing arm have enough distance to allow oscillation if mounted in a corner?

    Question Asked By: JJ, June 15, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, June 15, 2015

      "No it doesn't. We actually advise for these units NOT to be mounted in corners. Not only does it stop the oscillation of the fan, but it badly effects air flow of the fan due to a minor vacuum being created in the corner where the fan would suck air from. "

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
